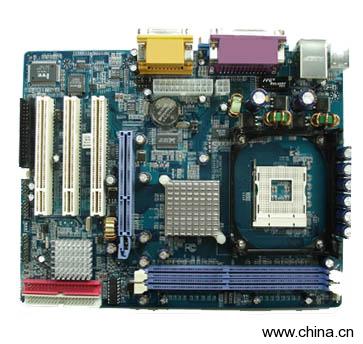

Motherboard is a Pneumatic Parts product. Key specs — Origin: China (Mainland).
Product Description
Model No.:SIS661 Product
Origin:China Brand
Name:Twister
Price Terms:FOB Shenzhen
Payment Terms:T/T, L/C, D/P negotiable
Certification: Description:
Features: 1) Processor: intel pentium 4 (socket 478) (800MHz FSB)2) Chip set: SiS661 + 963 3) BIOS: phoenix (award) PnP Flash ROM BIOS4) Memory: two DDR sockets supports up to 1GB (DDR266)5) Expansion slot: one AGP slot, two PCI slots6) Graphics (SiS): 64-bit single cycle 2D/3D graphic engines7) Transfer rate up to 533MB/sec 8) Supports 4 to 32MB frame buffer shared with system memory9) Integrated 24-bit 230MHz RAMDAC 10) AGP slot: 4X AGP slot11) Audio: integrated AC97 controller with standard AC97 Codec12) Lan: 10/100Mbps Lan (VIA)13) USB 2.0: integrated in chipset, USB2.0 x 614) IDE: integrated ATA100 controller15) Storage & IO connector 16) Two channels parellel ATA100 connector (supoorts up to 4 devices)17) One FDD port (supports 3 mode, 1.2/1.44/2.88MB FDD)18) One audio port (Line-in, Line-out, MIC-in)19) One PS/2 mouse port 20) One PS/2 keyboard port21) One parallel port22) One / two serial port (s)23) One VGA port24) One RJ45 port25) Six USB ports on back panel, 4 USB on header with optional cable26) Board size: 244mm x 228mm, Micro ATX form factor
