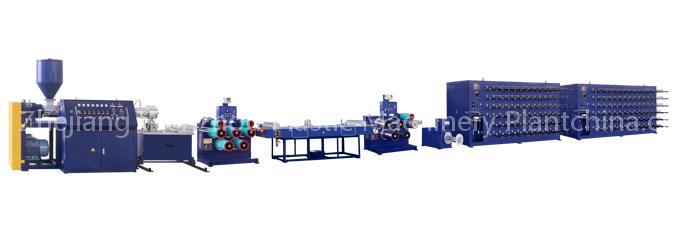

Monofilament Yarn Extruder Machine
Specifications
- Brand
- tianchen
- Origin
- China (Mainland)
Monofilament Yarn Extruder Machine is a Other Plastic & Rubber Machinery product. Key specs — Brand: tianchen; Origin: China (Mainland).
Product Description
Description: This machine is suitable for productio of monofilament by HDPE or PP as raw material. Performance: The assembly is compacted in its structure. AD motor is used for drawing, thus a synchronous speed regulation and a single speed requlation can be achieved to meet the different parameters.
The spinnerets is made by the laser technology, so that the flatness and eveness of the filament can be ensured. Stability in motion, Sensitiveness in control, Convenience operation, High safety and reliability. Application: Rope, Fish net, Construction safe net, Protectives net for the cotton field, Sun shading net, brushes, mosquito net, etc.
Main Technical ParameterModel SJ-YS-45 SJ-YS-65 Dia. of screw 45mm 65mm Revolution of screw 10-50r.p.m. 10-50r.p.m.
Capacity 20-45kg/h 30-60kg/h Dia. of monofilament 0.1-0.35mm 0.1-0.35mm Winding linear speed 100-150m/min 100-150m/min Number of winding spindle 100 spindles 150 spindles Installed power 90kw 120kw Overall dimension (L×W×H) 27000×2000×2000mm 30000×2000×2000
