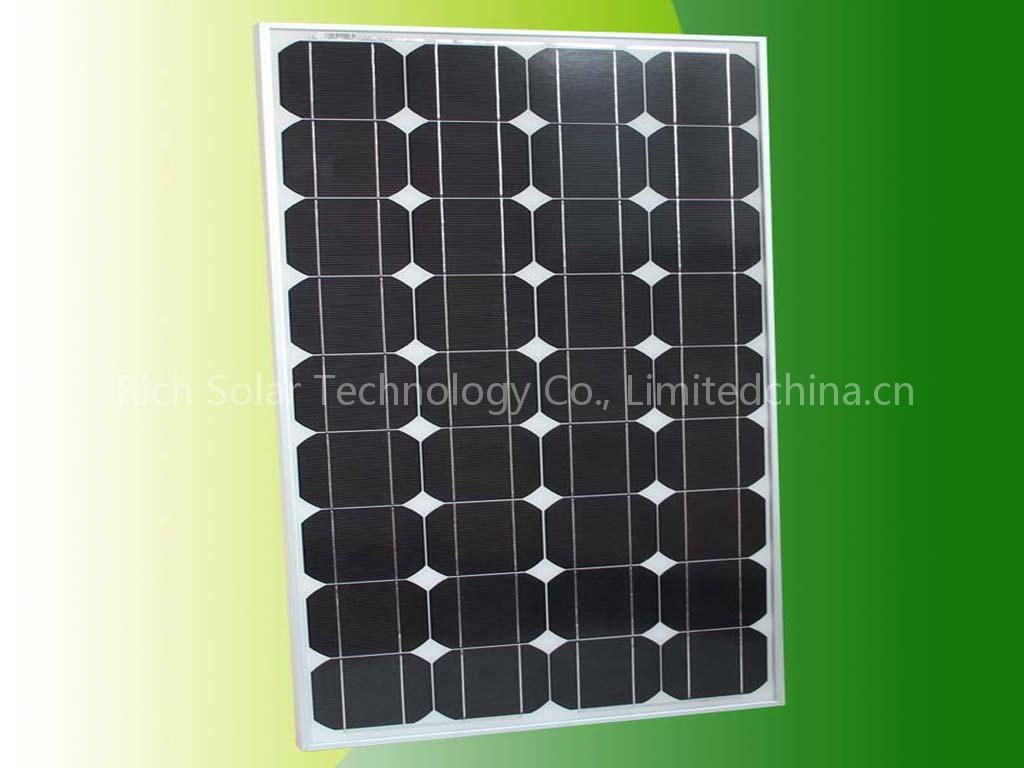

Monocrystalline Solar Panel(70W)
Specifications
- Origin
- China
- Price Term
- FOB
Monocrystalline Solar Panel(70W) is a Solar Panels product. Key specs — Origin: China; Price Term: FOB.
Product Description
1.2-Busbar configuration that can maximize the cell's light absorbing surface area; 2. Firm and weather-resistant aluminum frame that is given a double oxidation coating for additional protection to endure in rugged weather conditions; 3. EVA that produced by one of the world's most widely recognized quality EVA producers sealed with high quality TPT; 4.
High transmission low-iron oxide tempered durable glass surface; 5.
Standard junction-box with bypass Power ( Pmax ): 70Wp Weight: 8.0kg Dimension: 1200×540×35mm Module Efficiency: 11.10% Cell Efficiency: 13.40% Maximum Power Voltage ( Vmp ): 17.82V Maximum Power Current ( Imp ): 3.93A Open Circuit Voltage ( Voc ): 21.20V Short Circuit Current ( Isc ): 4.34A Maximum System Voltage:DC1000V Temp. Coeff.
Of Isc ( TK Isc ): 0.058%/ºC Temp. Coeff. Of Voc ( TK Voc ):-0.367%/ºC Temp. Coeff. Of Pmax ( TK Pmax ): -0.485%/ºC Normal Operating Cell Temperature: 44.4±2ºC STC: 1000W/ M² solar irradiance, 1.5Air Mass, and cell temperature of 25ºC
