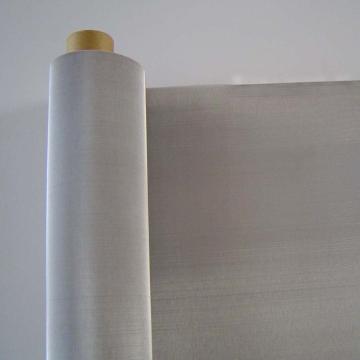

Monel 40 wire mesh

Monel 400

Chemical composition (%): C Mn S Si Ni Cu Fe 0.30 max 2.00 max 0.024 max 0.50 max 63.0 min 28.0-34.0 2.50 max

Physical and Mechanical Properties: Melting point (ºC ) 1300-1350 Hardness 125-190 Tensile strength ( M/Pa ) 550-950

Characteristics: 1. Particularly resistant to hydrochloric, sulfuric and hydrofluoric acids when they are de-aerated 2. Excellent resistance to neutral and alkaline salt 3. Resistance to chloride induced stress corrosion cracking 4. Good mechanical properties from sub-zero temperatures up to 1020ºF 5. High resistance to alkalis

Applications: 1. Marine engineering 2. Chemical and hydrocarbon processing equipment 3. Gasoline and freshwater tanks 4. Crude petroleum stills and Crude oil distillation towers 5. Boiler feed water heaters and other heat exchangers 6. Valves, pumps, shafts, fittings, and fasteners

Specification: Wire JIS C2521 ANSI/ASTM B164 Diameter:0.05mm-10.0mm, 0.002 Inch to 0.3937 Inch Wire Mesh GB/T 5330.1 GB/T 17492 JB/T 9155 0.5-250 mesh/Inch Thickness: Min0.05mm Sheet JIS C2521 Thickness: 0.05mm and above
