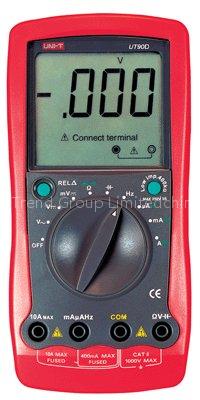

Modern Environmental Friendly Digital Multimeter
Listing ID#10136886
ModelUT90D
CategoryIndustrial Power Supplies
Industrial Power Supplies

Modern Environmental Friendly Digital Multimeter

Specifications

Brand
Uni-Trend
Origin
China (Mainland)
Request Quote
Quick answer

Modern Environmental Friendly Digital Multimeter is a Industrial Power Supplies product. Key specs — Brand: Uni-Trend; Origin: China (Mainland).

Product Description

SPECIFICATIONS
Basic Functions of Modern Environmental Friendly Digital MultimeterRangeBest Accuracy
DC Voltage400mV/4V/40V/400V/1000V(0.8%+1)
AC Voltage

4V/40V/400V/750V
400μA/4000μA/40mA/400mA/4A/10A

(1%+5)
DC Current400μA/4000μA/40mA/400mA/4A/10A (1%+2)
AC Current400μA/4000μA/40mA/400mA/4A/10A (1.2%+2)
Resistance400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ (1%+2)
Capacitance40nF/400nF/4uF/40uF/100uF (3%+5)
Frequency10Hz-10MHz(0.1%+3)
Special Functions
Low Impedance Selection
Fused 10A Range
mA Fuse Resettable
Auto Ranging
Diode
Continuity Buzzer
Relative Mode
Data Hold
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for DC
Voltage Measurement		Around 10MΩ
Max. Display3999

GENERAL CHARACTERISTICS
Power of Modern Environmental Friendly Digital Multimeter9V Battery (6F22)
LCD Size60 x 54mm
Product ColourRed And Grey
Product Net Weight340g
Product Size179×88×39mm
Standard AccessoriesTest lead, Batteries, English Manual, Holster
Standard Individual PackingGift Box
Standard Quantity Per Carton40pcs
Standard Carton Measurement598 x 418 x 340mm (0.085 CBM Per Standard Carton)
Standard Carton Gross Weight23 kg

*Available at Extra Cost
Specifications and other information of Modern Environmental Friendly Digital Multimeter are subject to change without further notice.
