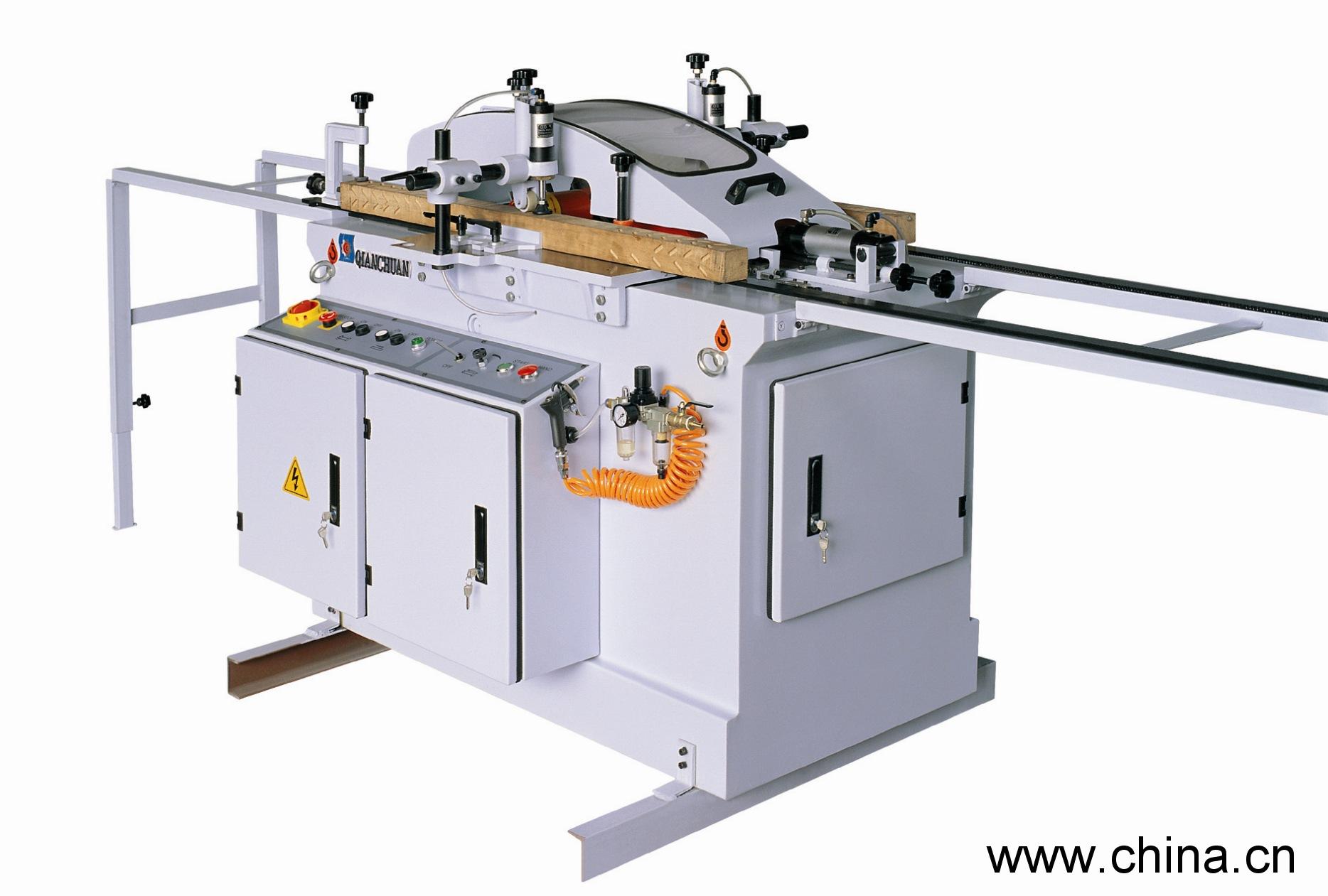

Model ZXC1000 Automatic Slot-cutting Machine
Specifications
- Brand
- QianChuan
- Origin
- China (Mainland)
Model ZXC1000 Automatic Slot-cutting Machine is a Woodworking Benches product. Key specs — Brand: QianChuan; Origin: China (Mainland).
Product Description
Max. cutting length | 100 mm |
Compressed Air Required | 0.6—0.7 mm |
Max. Section Size | 100×120 mm |
Min. Section Size | 20×40 mm |
Cutters Rotating speed | 10500 r/m |
Cutters Fitting Diameter&Depth | φ13mm×40mm |
Max Cutting Width | ≤18mm |
Cutting Angle | 0°—90° |
Cutter Motor | 1.1 Kw 2 Pole |
Sliding Support Motor | 0.75Kw 6 Pole |
Overall Dimension | 3400×980×1500mm |
Net Mass | 568 Kg |
Slots Space (mm) | 6.5—13—19.5—26—32.5—39—45.5—52—58.5 —65—71.5—78—84.5—91—97.5 |
When two pieces of wood are processed, the general rack length is 3.3m. |
Model ZXC100 Auto-Slot-Cutting Machine is designed for cutting horizontal, vertical or various compositive slots on different rectangular sections of woods. Its characteristics are compact structure, accurate transmission, easy operation, safe and reliable circuit. With high cutting accuracy, convenience to change the specs of slots, grooves, holes etc., it is a high efficient woodworking machinery for furniture, decorative material products.
