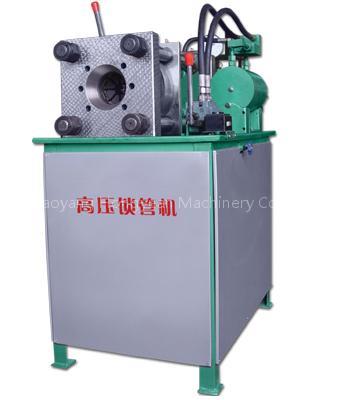

Model DSG-102 High-pressure hose crimping machine
Specifications
- Brand
- HAORI
- Origin
- CHINA
- Price Term
- FOB
Quick answer
Model DSG-102 High-pressure hose crimping machine is a Business Services product. Key specs — Brand: HAORI; Origin: CHINA; Price Term: FOB.
Product Description
1. The usage
The machine is an enhanced type of a high pressure locking tube machine in model 102, which is the special equipment for pressing the tube end of a high pressure rubber tube with a outer cover and a core together for the production or repair a hydraulic support.
2. The composition and the main technical characters
The machine is composed of a locking & pressing mechanism, a motor, a gear pump, a control valve and an oil tank.
Maximum inside diameter of attaching
Rubber tube:102mm
Maximum length of attaching bent:320mm
VOLTAGE:380v
Power:7.5kw
Dimension:lengthxwidthxheight:1800x840x1400mm
