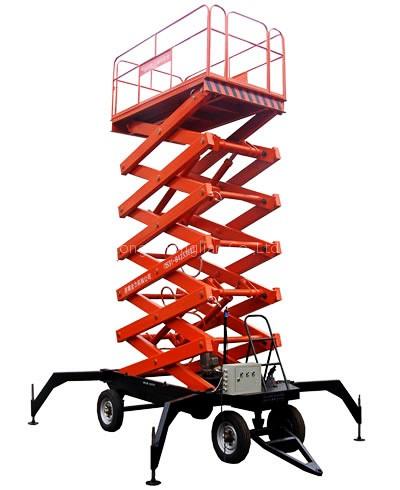

Mobile Hydraulic Scissor lift platform

Main point:
1.Capacity:300kg
2.Table size:1500*750mm
height:4m,8m,12m,16m,18m
The specification of product:

Model	Capacity	Table size	Max height	Work height	Maximum Dimensions	Net weight
SJY0.3-4	300Kg	1500×750mm	4m	5.7m	1700×900×1100mm	630Kg
SJY0.3-6	300Kg	1500×750mm	6m	7.7m	1700×900×1300mm	760Kg
SJY0.3-8(S)	300Kg	1650×750mm	8m	9.7m	1870×900×1410mm	880Kg
SJY0.3-8(L)	300Kg	1800×1200mm	8m	9.7m	2300×1500×1420mm	1240Kg
SJY0.5-8	500Kg	1800×1200mm	8m	9.7m	2300×1500×1450mm	1400Kg
SJY0.8-8	800Kg	1800×1200mm	8m	9.7m	2300×1500×1540mm	1480Kg
SJY0.3-9	300Kg	1800×1200mm	9m	10.7m	2300×1500×1500mm	1000Kg
SJY0.5-9	500Kg	2000×1200mm	9m	10.7m	2500×1500×1550mm	1300Kg
SJY0.3-10	300Kg	2120×l200mm	10m	11.7m	2600×1500×1550mm	1400Kg
SJY0.5-10	500Kg	2120×l200mm	10m	11.7m	2600×1500×1550mm	1550Kg
SJY1-10	1000Kg	2120×l500mm	10m	11.7m	2600×1950×1740mm	1930Kg

We can also design goods according to your requirements.Please tell us the following information:Capacity,Table size,Work height.

Introduction:

kind lift platform has several models on different standards. The lifting height of the scissor lift is 4m ,6m, 8m,10m ,11m and so on. And the max height of the scissor lift is 18m.

capacity of scissor lift is 300kg, 500kg,800kg,1000kg and so on. The Max capacity could be 7000kg.

control button is all put on the ground panel, but they can be changed onto the platform or controlled by a remote controller.

4. The tire of the lift can be chosen from MGW tire or solid tire or other kinds.

Power driven:

1.Power of the scissor lift could be electronic or diesel or manual. And the lifting drive of the lift is hydraulic or battery power lift table.

usual power supply is external connection electricity variety of 220v, 240v, 380v, 400v.

power supply can be changed to diesel driven power to meet the need where the electricity is not available. Or the machine is implanted with anti-explosive for the environment
