Mobile Boiler is a Pressure Switches product. Key specs — Origin: China (Mainland); Price Term: FOB.
Product Description

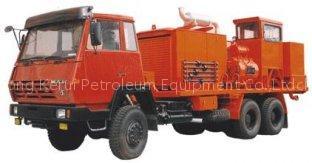

A mobile equipment With truck chassis as mounting base. All the equipments are fixed on the metal framework connecting with automotive frame. It may also be manufactured to be skid mounted subject to request of the user.
It can provide high temperature, high pressure water and steam, used for clearing away paraffin precipitation of oil well, oil pipe and line pipe and heating crude oil, it also can provide steam unfreezing, cleaning well head assembly and the other places where needed.
It can be used for unfreezing and hydro thermally cleaning equipments, well head, line pipe and other equipments in winter.
Specification
Rated Steam Capacity: 1000-1200kg/h Maximum Outlet Pressure: 6MPa
Maximum Outlet Temperature: 280℃
Model | 5230TGL Mobile Boiler | 5220TGL6 Mobile Boiler | 5210TGL6 Mobile Boiler | 5200TGL6 Mobile Boiler |
Truck Chassis | Steyr SX1254BM434 | Jiefang CA1245P1K2L7T1 | Jiefang CA1240P2K14T | Jiefang CA1246P1K14L7T1 |
Chassis drive Method | 6×4 | 6×4 | 6×6 | 6×4 |
Water treatment | deploy electronic water treatment equipment | |||
Water pump | WH-1223Aã€WS82horizontal three Triplex high pressure ceramic plunger pump (imported from foreign country) | |||
W ater tank capacity | 4m3 | 8 m3 | 4m3 | |
fuel tank capacity of boiler | 0.73 m3 | |||
Cabin | double layer heat preservation Cabin | nothing | double layer heat preservation Cabin | |
Model | LT5150TGL6 Mobile boiler | 5150TGL6 Mobile boiler | 5140TGL6 Mobile boiler | 5140TGL Mobile boiler | 5110TGL Mobile boiler |
Truck Chassis | Steyr SX1164BL461 | Steyr SX2160M | Dongfeng EQ114G7DJ2 | Dongfeng EQ1141G7DJ | Dongfeng EQ1141G7DJ |
Chassis Drive type | 4×2 | 4×4 | 4×2 | 4×2 | 4×2 |
Water Treatment | deploy electronic water treatment equipment | ||||
Water Pump | WH-1223Aã€WS82 Horizontal Triplex High Pressure Ceramic Plunger Pump (imported from foreign Country) | ||||
Water Tank Capacity | 2.8m3 | ||||
Fuel Tank Capacity Of Boiler | 0.73 m3 | ||||
Cabin | double layer heat preservation cabin | ||||
