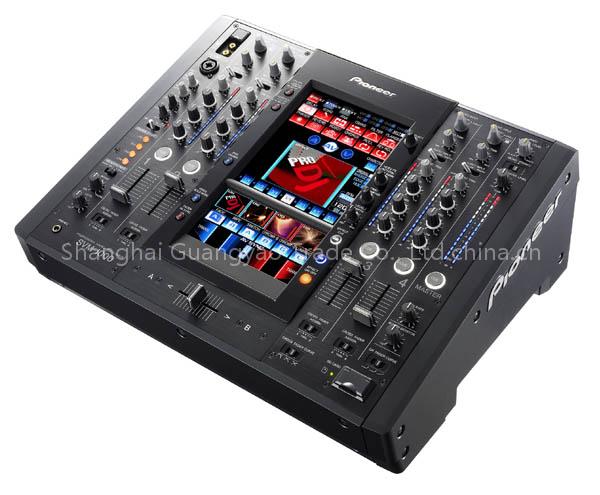

Mixers SVM-1000

AUDIO

Input Terminal

DVD/LINE x6 (RCA)
PHONO x2 (RCA)
MIC x2 (XLR & 1/4”, also be used as PHONE x1, 1/4” PHONE x1)

Output Terminal

MASTER OUT x2 (RCA x1, XLR x1)
BOOTH OUT x1 (1/4” PHONE)
HEADPHONE MONITOR OUT x1 (TOP PANEL 1/4” PHONE x1)
REC OUT x1 (RCA)
DIGITAL OUT x1 (COAXIAL)

Other Terminal

MIDI OUT x2 (5 pin DIN x1, USB x1)
CONTROL (0.14” MINI JACK) x4

Sampling Rate

96 kHz

A/D, D/A Converter

24-bit

Frequency Response

20 Hz - 20 kHz

Total Harmonic Distortion

0.005% or less

Signal-to-Noise Ratio

105 dB (LINE)

Head Room

19 dB

VIDEO

Input Terminal

DVD/VIDEO x10 (COMPOSITE RCA)
S-VIDEO x4 (S1/S2)

Output Terminal

MASTER OUT x4
(COMPOSITE RCA x1, COMPOSITE BNC x1
COMPONENT BNC x1, S1/S2 x1)
MONITOR OUT x2 (COMPOSITE RCA x1, S1/S2 x1)

Other Terminal

VIDEO SYNC OUT x4 (BNC)

Other Terminal

USB, SD

Power Requirements

AC 120 V (60 Hz)

Power Consumption

58 W

Dimensions (without package)

19.7” (W) x 16.2” (D) x 7.9” (H)

Weight

28.2 lbs
