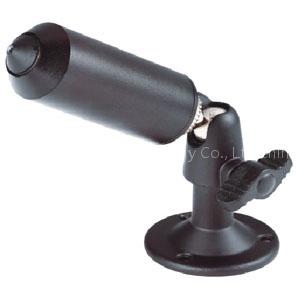

Miniature CCTV Camera (BMWA) is a Surveillance Products product. Key specs — Origin: China.
Product Description
New 1/3’’ Sony CCD image sensor
4.3mm Taper Pinhole Lens
Pinhole Camera
Compact size and beautiful design
Easy installation
Specifications:
Model Name | BMWA-42 |
Image Device | New 1/3’’ Sony CCD image sensor |
Resolution | 420 TVL |
Picture Element | PAL: 512(H)582(V); NTSC: 512(H)×492(V) |
Min. Illumination | 0.3Lux /F2.0 |
Video Format | PAL/NTSC |
Lens Furnished | 4.3mm Taper Pinhole Lens |
S/N Ratio | More than 48dB |
Electronic Shutter | NTSC: 1/60~1/100,000; PAL: 1/50~1/110,000 |
Gamma | 0.45 |
White Balance | Auto |
Gain Control | Auto |
Synchronizing System | Internal |
Video Output | 1Vp-p / 75 Ohms |
Power Supply | DC12V±10% |
Operation Temperature | -10°C ~ +50°C RH95% Max |
Dimension | Ä€2443(H)×128(L)mm |
Weight | 135g |
