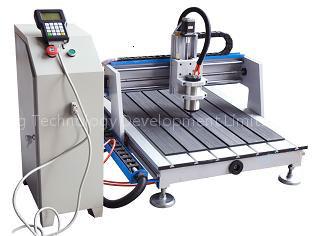

Mini CNC Router

1) X,Y axis working area: 600 x 900mm

2) Z axis working area: <100mm

3) Table size: 720 x 1150mm

4) Max. speed: 0 - 4,000mm/min

5) Max. working speed: 0 - 3,000mm/min

6)Working delicacy: 0.02mm

7) Reposition accuracy: 0.05mm

8) Max. Feeding height: 110mm

9) Engraving Command: G code x, u00 x, mmg x, plt

10) Software: type 3 software, Wentai software, Artcam software

11 Max. power consumption: 2kW

12) Spindle: 1.5KW variable speed, water cooled motor

13) Spindle speed: 24,000rpm

14) Work type: stepper

15) Weight: 220kg

16) Working voltage: AC 220V, 50/60 Hz

17) Memory: 32M

18) Manner of receiving data :USB

19) Running circumstance temperature: 0 - 45°C

20) Relative humidity: 30% - 75%
