Listing ID#10229093
ModelVH Model 500w to 5kw
CategoryEnergy Projects

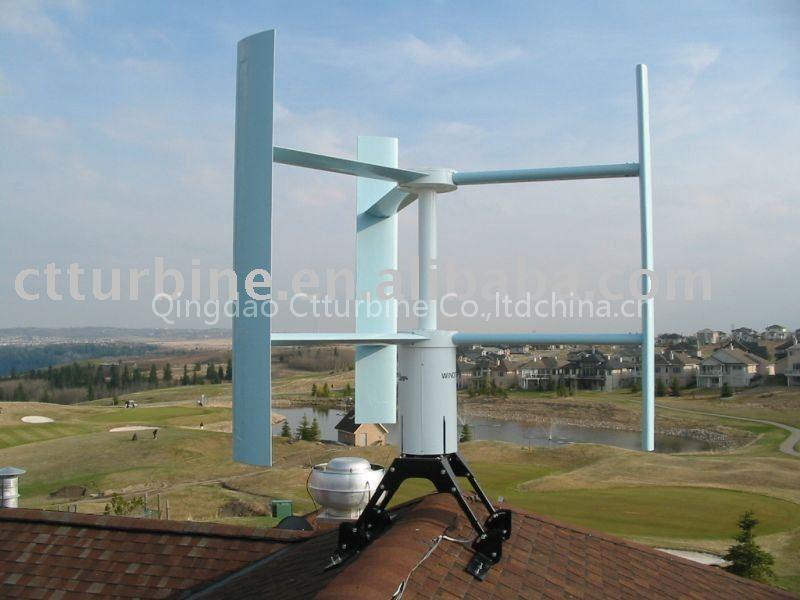

Micro vertical wind turbine for home use
Specifications
- Brand
- Ctturbine
- Origin
- Qingdao
- Price Term
- FOB
Quick answer
Micro vertical wind turbine for home use is a Energy Projects product. Key specs — Brand: Ctturbine; Origin: Qingdao; Price Term: FOB.
Product Description
Vertical axis wind turbine
Our company specializes in vertical wind turbine and permanent magnet generator,our wind turbine is more safe,quite and efficient.
It can be widely used in farm or placed in the top of the city buildings as the city logo, it can provide free power for the street light
also can be installed in the mountain,the seaside or other wasteland for a wind power station.
Our company specializes in vertical wind turbine and permanent magnet generator,our wind turbine is more safe,quite and efficient.
It can be widely used in farm or placed in the top of the city buildings as the city logo, it can provide free power for the street light
also can be installed in the mountain,the seaside or other wasteland for a wind power station.
Specifications
Vertical axis wind turbine
| VerticalWindTurbine--VHModel500Wto5KW | |||||
| Item/Model | CTV-500W | CTV-1KW | CTV-2KW | CTV-3KW | CTV-5KW |
| RatedPower(W) | 500 | 1000 | 2000 | 3000 | 5000 |
| RotorDiameter(m) | 1.4 | 1.75 | 2.6 | 3.5 | 4 |
| BladeLength(m) | 1.5 | 1.8 | 2.6 | 3.8 | 4 |
| SetupSpeed(m/s) | 2 | 2.5 | 2.5 | 2.5 | 3 |
| RatedSpeed(m/s) | 8 | 8 | 10 | 10 | 10 |
| WorkingSpeed(m/s) | 2.5–25 | 3–25 | 3–25 | 3–25 | 3.5–25 |
| OUTDCoffgrid(v) | 24 | 48 | 96 | 220 | 380 |
| Batteryoffgrid | 12V150AH*2 | 12V150AH*4 | 12V150AH*8 | 12V150AH*18 | 12V150AH*30 |
| OUTDCongrid(v) | \ | 150-450 | 200-450 | 200-450 | 200-780 |
| HeightofTower(m) | 6 | 6 | 6 | 8 | 9 |
| UpperWeight(kg) | 67 | 95 | 188 | 217 | 605 |
| GeneratorType | 3phasepermanentmagnet,directdriven | ||||
| Chargecontroller | withAutomaticElectricalBrake | ||||
| PureSineWaveInverter | 110/220/230V,50/60Hz | ||||
Notes
1.For the power curves and details,please feel free to contact me.
2.Our CE EMC certification number:1826
3.Please feel free to contact us anytime
