Micro CMOS camera module-Endoscope camera module

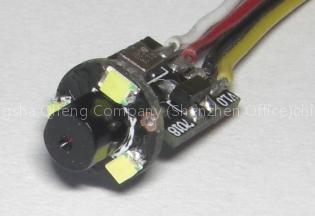

Endoscope camera module (Model: RS7018A-68)This device is OV6920 camera module, it is used for video endoscope, inspection camera; it has small size, just 7mm diameter, with 3LED on tips, and low consuption.

Specification:Image Sensor 1/18 CMOS Horizontal Resolution 240TVLSensing Area 820μ m×625μmSignal System NTSCEffective Pixels 320×240Electronic Shutter 1/60S – 5.7μSS/N Ratio ≥42dB Gray Rating 10th rankGamma value 0.45Low electricity level 0.06 Vp-pScanning frequency H:15.7343KHz V:60HzMinimum Illumination 2.0 Lux / F2.0(0 Lux When LED is on)Video Output 1.0Vp-p 75ΩStandard layout lens F2.8 ,ELF: 0.96mm, with IR cutLED Lamps 1mm-100mm(3 lamps )dimensions o Main board: 7mm(D)×14mm(L)Power Consumption DC 3.5V-- 6V camera module:20mA; LED:45mAOperation Temperature -20℃~45℃ RH95% Max
