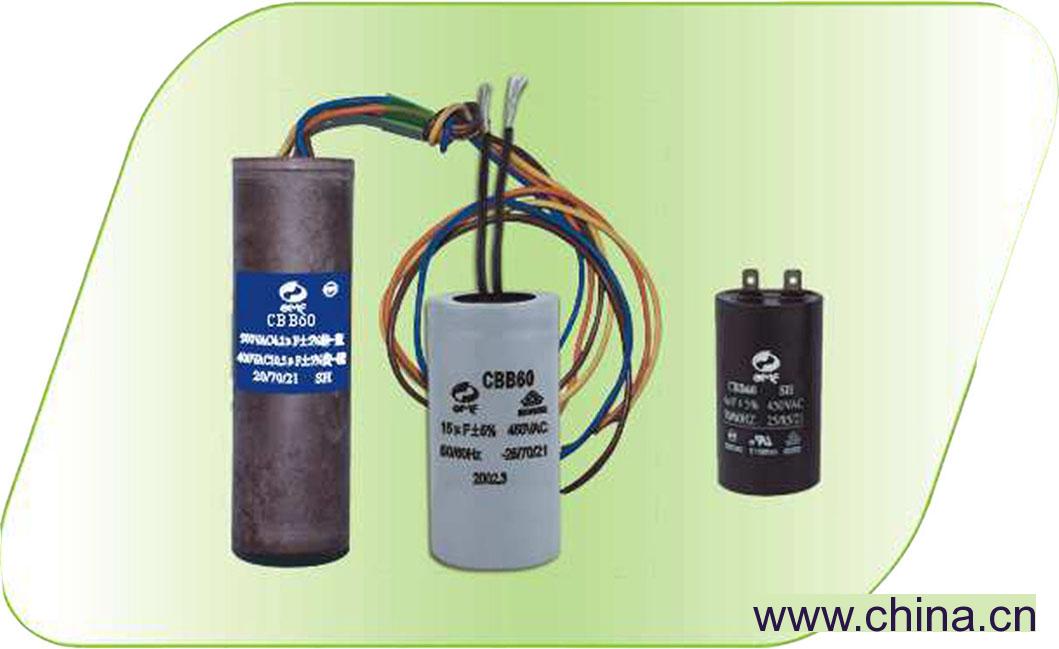

Metallized Polypropylene Film Capaciter for AC
Specifications
- Origin
- China (Mainland)
Metallized Polypropylene Film Capaciter for AC is a Capacitors product. Key specs — Origin: China (Mainland).
Product Description
Model No.:CBB60 Product
Origin:China Brand
Name:EMF
Price Terms:FOB Shenzhen
Payment Terms:T/T, L/C
Certification: Description:
Features: 1, Box type provides the identical outer appearance2, Very low loss at high frequency, suitable for high current 3, High insulation resistance, long life due to self-healing effect4, Applicable to the start-up and operation of 50Hz (60Hz) single-phase motor
Specifications: 1, Reference standard: GB/3667-1997 (IEC 252)2, Climatic category: 40/70/213, Rated voltage: 250VAC~500VAC4, Capacitance range: 8~100μF5, Capacitance tolerance: ±5% (J), ±10% (K), ±20% (M)6, Voltage proof: between terminals 1.6Ur (5s)Terminals to case 2,000VAC7, Dissipation factor: ≤0.4% (20°C, 1k Hz)8, Insulation resistance:≥4,000s (20°C, 1min)
