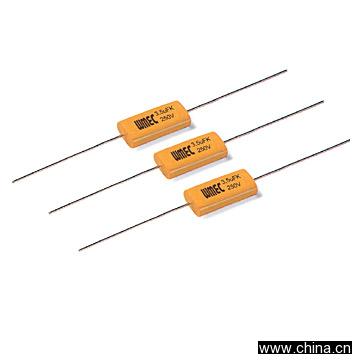

Metallized Polyester Film Capacitor is a Capacitors product. Key specs — Origin: China (Mainland).
Product Description
Model No.:MET, MEA Product Origin:China Brand Name:WMEC Price Terms:FOB, CIF Payment Terms:T/T, L/C Certification: Description:Features:MET:1) Operating temperature: -40~+85°C2) Capacitance range: .01~10μF3) Capacitance tolerance: ±5%, ±10%, ±20%4) Rated voltage: DC 100V/250V/400V/630V5) Dissipation factor: 0.75% max. at 1kHz 25°C6) Insulation resistance: a) ≥30,000mΩ (C≤.33μF) b) ≥10,000mΩ x μF (C≥.33μF) 7) Dielectric strength: 150% of rated voltage for 5sMEA:1) Operating temperature: -40~+85°C2) Capacitance range: .01~10μF3) Capacitance tolerance: ±5%, ±10%, ±20%4) Rated voltage: DC 100V/250V/400V/630V5) Dissipation factor: 0.75% max. at 1kHz 25°C6) Insulation resistance: a) ≥30,000mΩ (C≤.33μF) b) ≥10,000mΩ x μF (C≥.33μF) 7) Dielectric strength: 150% of rated voltage for 5s
