Listing ID#10053223
ModelGR-12
CategoryBusiness Services
Quick answer
Metallized Film is a Business Services product. Key specs — Origin: China; Price Term: FOB.
Product Description
Product type:Capacitors Film - Metallized Film

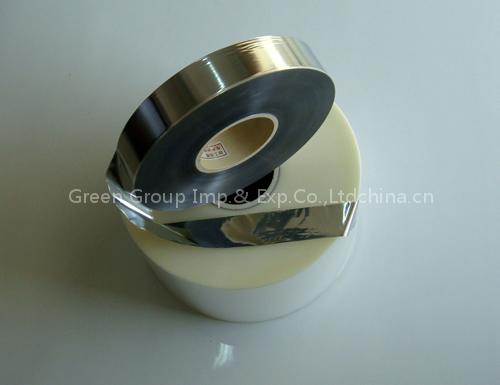

Name:Metallized Film
Item:Metallized Film
Description: 1.TypeAl/Zn Metallized film Al Metallized film Safety Anti-explosion Film 2.ApplicationApplied to capacitors for power system, refrigerators and air conditionersConstruction3.Aluminum/Zinc film with reinforced edge4. Specificationitem unit nominal value
roll mm roll diameter inner diameter 76
outer diameter 150-300 (The specific diameters can be customized. )
thickness μm 4,5,6,7,8,9,10,12
width mm 30,35,37.5,40,45,50,55,60,65,70,75,80,85,90,95,100,115,120,125,130,14,17.5, 21, 26
margin value mm 2.5,2.0,1.5
