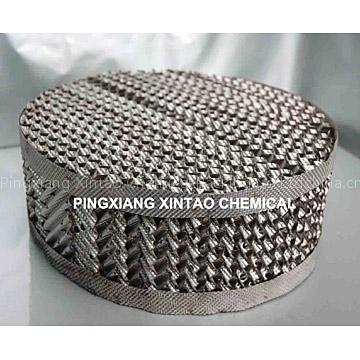

Metal Stuctured Packing is a Metallic Minerals product. Key specs — Brand: Xintao; Origin: China.
Product Description
Metal wire gauze packing is equivalent to wire gauze packing.
Technical data
Model | Specific surface | Bulk density | Void ratio | Obl. | P | Theo. plate |
250(AX) | 250 | 125 | 95 | 300 | 100~400 | 2.5~3 |
500(BX) | 500 | 250 | 90 | 300 | 400 | 4~5 |
700(CY) | 700 | 350 | 85 | 450 | 600~700 | 8~10 |
Material
Metal wire gauze packing is available in a wide range of materials, include stainless steels, 304, 316, 316L, Carbonsteels. Aluminium, copper bronze etc. Further materials available on request.
Application
Fine chemical, flavours factory, isomer separation. The separation of thermally sensitive materials, testing tower and the improvement of tower.
