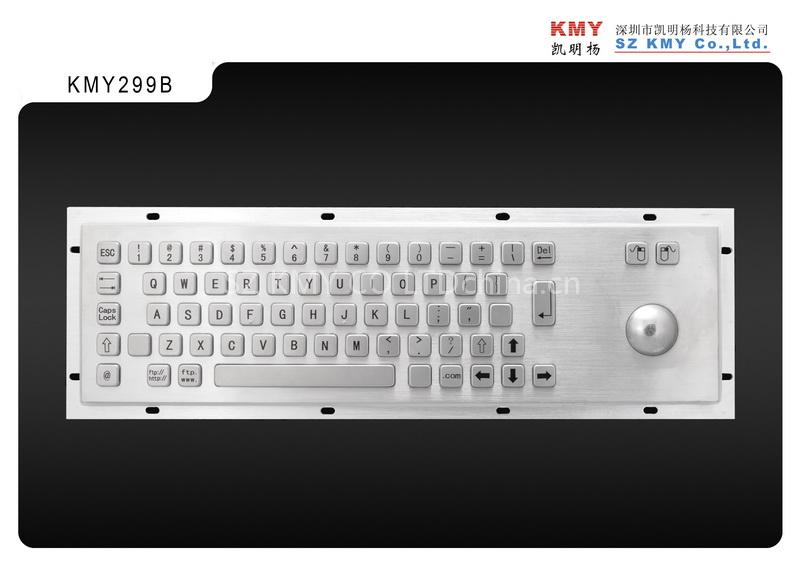

Metal Keyboard with Track

Basic Instructions

1.Support WIN98,WIN2000,WIN XP System

2.comply with ISO/IEC 9995,GB/T14081 standard

3.Keyboard made of high quality stainless steel

4.With 65 customized keys and trackball

5.Dustproof, waterproof, shake-proof and vandal proof

Applications:

1.Check-in Kiosk, Info-Kiosk, Internet Kiosk, Medical Kiosk, Industrial Control Platform.

Interface: PS/2 or USB

Mechanism Performance

1.Keyboard lifespan: more than 2 million

2.Force on keys: 3-5N

3.Key travel: >2.5mm

4.Diameter of trackball: 38mm

Environment adaptation

1.Protection Level:IP65 static /IP54 dynamic

2.Operating Temperature:

1.Economical Grage: 0℃~+45℃ RH:30~90%,

2.Industrial Grade: -40℃~+60℃ RH: 30~90%

3.Storage temperature(Recommended):-25℃~+55℃ RH:20~95%(No condensate)　

4.Maximum humidigy in operating environment:90%

5.Air Pressure: 60-106 Kpa

Approvals:

• RoHS,CE,FCC
• IP65,IK07
