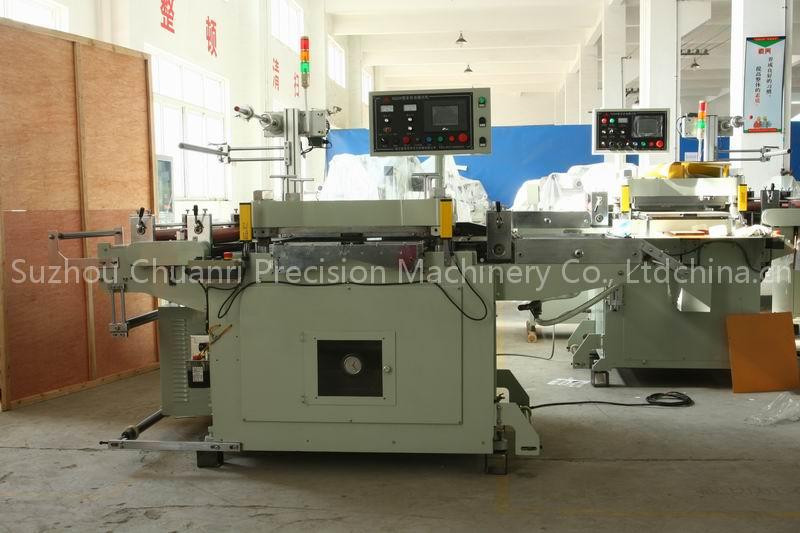

Metal Foil Die Cutting Machine With Laminating

Model MQ-610

Max Feeding Widthmm 630

Cutting Areamm 610*630

Cutting Speedt/min 20-60

Accuracymm ±0.10

Power of main engineKW 5.5

Sizemm 3050*1680*1900

VoltageV 380

Total Powerkw 9

Various insulating materials such as self adhesive mterial, protective film, electronic shield materials, PVC, film, Mylar, Copper foil, aluminum foil, foam, etc. And LCD module parks: reflector, diffuser, gaskets, silicon tape. Functional characteristics: The max die cut area is 630mm, suitable for die cut big material. And it could assemble endless belt to achieve through cut.
