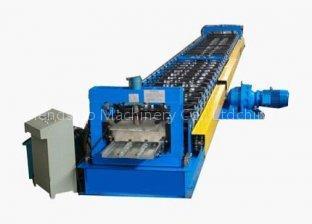

Metal Deck Roll Forming Machine

Delivery Time:30 days 1.Production Characteristic and use: The metal deck roll forming machine adopt new station, it is increase the strength of the machine;; the metal deck end product widely used in floor flat, after make dots of the sheet it is can increase of friction between the steel and concrete, thereby increasing the floor of the fastness  Technical Specification: Material width:1250 mm Material thickness: 0.8-1.5mm Work speed: 12-15m/min Roll station: 32 stations Main power: 22KW(two 11KW) Hydraulic station power: 5.5KW Control system: Panasonic brand PLC Drive: by chain
