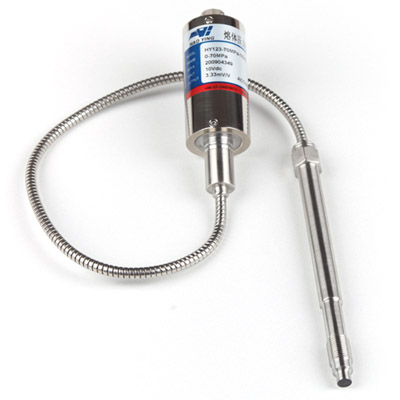

Melt pressure transmitter
Specifications
- Brand
- Haoying
- Origin
- China
- MOQ
- 1
- Packaging
- box/per
- Price Term
- EX-Work
- Payment Term
- T/T in advance
- Supply Ability
- 5pcs /5-7 working days
- Delivery Time
- 5-7 working days
- Loading Ports
- Shanghai or others
Melt pressure transmitter is a Electronics & Instrument Enclosures product. Key specs — Brand: Haoying; Origin: China; MOQ: 1; Packaging: box/per.
Product Description
Features: Multifarious construction, zero and span adjustable, amplified signal designed to direct input PLC. Interchangeable with all the global similar products.
This PT123B series are suitable for the pressure measuring and controlling in the high temperature liquid medium of the chemical fiber filature, polyester, the equipment of rubber and plastic machine and etc.
Specifications Ranges: 0~1~200MPa Combined accuracy: 0.25%FS ; 0.5%FS Signal output: 0~5V ; 0~10V ; 4~20mA Excitation: 24Vdc (12~36Vdc) Maximum diaphragm temperature: 400℃ Electric connection: 6 pin Process connection: 1/2-20UNF; M14×1.5 ; M18×1.5; (Optional
