Listing ID#64019
ModelPT123B
CategoryElectronic Components, Accessories

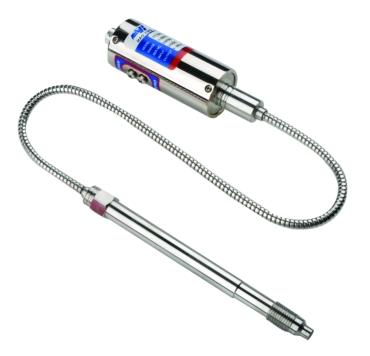

Melt Pressure Transmitter- PT123B
Specifications
- Origin
- China
- Price Term
- EX-Work
- Payment Term
- T/T
Quick answer
Melt Pressure Transmitter- PT123B is a Electronic Components, Accessories product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.
Product Description
Pressure Transmitter: Better performance, reliable stability, repeatability, Low cost,CE,ISO9001:2000,EX-Proof etc Pressure Transmitter Specification 1 Pressure Range -100KPa5KPa60MPa 2 Accuracy ±0.5%FS 3 Power Supply 24Vdc; 4 Output Signal 0~5V;0~10V;4~20mA; 5 Diaphragm Temp. -25~+125 6 Diaphragm Material 15-5PH;17-4PH 7 Thermocouple / 8 E-connection 6PIN 9 Process connection 1/2-20UNF;M14×1.5M18×1.5;M20×1.5;Special design 10 Application fiber machine,rubber-plastic machine,polymer machien,etc 11 CE certificate Available 12 OEM Available
