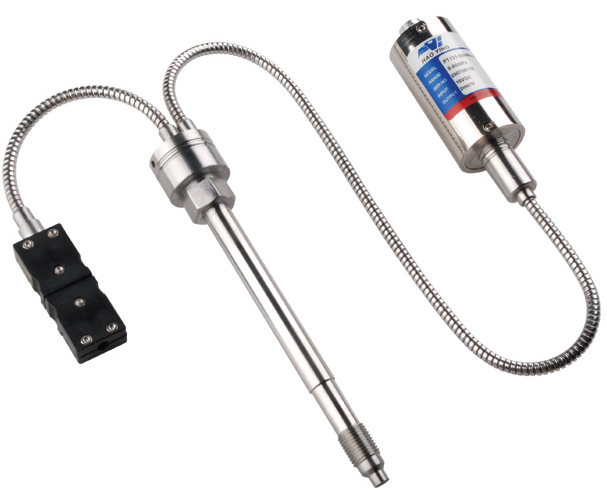

Melt Pressure Transducer- PT133
Specifications
- Origin
- China
- Price Term
- EX-Work
- Payment Term
- T/T
Melt Pressure Transducer- PT133 is a Electronic Components, Accessories product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.
Product Description
Overall Accuracy ±1.0%FS Stainless steal sealed 80% shunt calibration Zero and span adjustable Various amplified signal available Good stability & interference resistance Rigid stem and armored flexible stem to isolate high temp.
Double testing function available Reasonable Price Specification 1 Pressure Range 0~10MPa~70MPa 2 Overall Accuracy ±1.0%FS 3 Power Supply 24Vdc 4 Output Signal 4~20mA; 0~5V;0~10V 5 Diaphragm Temp.
300°C 6 Diaphragm Material 15-5PH;17-4PH 7 Thermocouple E;K;J;pt100 8 E-connection 5PIN 9 Process connection M14×1.5, M18×1.5; M22×1.5 10 Application Rubber plastic Machine,polymer machine, etc. 11 CE certificate Available 12 OEM Available 13 Net Weight 0.57kg
