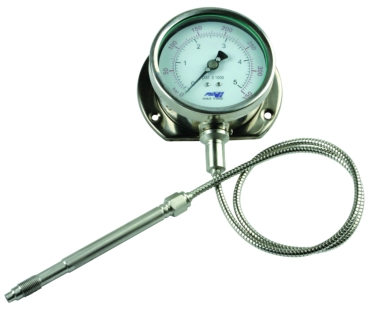

Melt Pressure Gauge- PG123
Specifications
- Origin
- China
- Price Term
- EX-Work
- Payment Term
- T/T
Melt Pressure Gauge- PG123 is a Electronic Components, Accessories product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.
Product Description
Accuracy better than±0.5% Stainless steal sealed Good stability and repeatability High temperature resistance Rigid stem and armored flexible stem to isolate high temperature Specification 1 Pressure Range 0~35MPa~250MPa 2 Accuracy ±1.5%FS 3 Power Supply 10Vdc 4 Output Signal 3.33mV/V 5 Diaphragm Temp.
400°C 6 Diaphragm Material 15-5PH; 17-4PH;Armoloy Coated 7 Thermocouple / 8 E-connection 6PIN 9 Process connection 1/2-20UNF, M14×1.5, M18×1.5;Special design 10 Application Fiber Machine,Rubber plastic machine,polymer machine, etc. 11 CE certificate Available 12 OEM Available 13 Net Weight about 1kg
