Listing ID#10049059
ModelPL-13D+TH200+FW650
CategoryCable Manufacturing Equipment

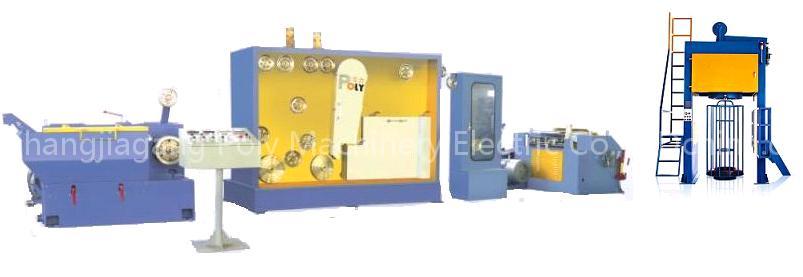

Medium wire drawing machine
Specifications
- Brand
- poly
- Origin
- china
Quick answer
Medium wire drawing machine is a Cable Manufacturing Equipment product. Key specs — Brand: poly; Origin: china.
Product Description
Name | 17DT | 9DMT | 13DST |
Wire diameter scope of annealing (mm) | 0.4-1.2mm | 1.0-2.86mm | 0.40∼1.6 |
Maximum mechanical speed (m/min) | 1800 | 1200 | 1500 |
Maximum voltage for annealing (v) | 50V | 50V | 60V |
Maximum electric current for annealing (a) | 1200A | 3000A | 2000A |
Annealing capacity (kva) | 60KVA | 160KVA | 120KVA |
Control mode of annealing | Six-phase half waves type | ||
Power of steam generator | 6 | ||
Machine dimensions (mm) | 1300×1050×2380 | 1500×1330×2600 | |
Weight of machine (kg) | 2500 | 2500 | |
