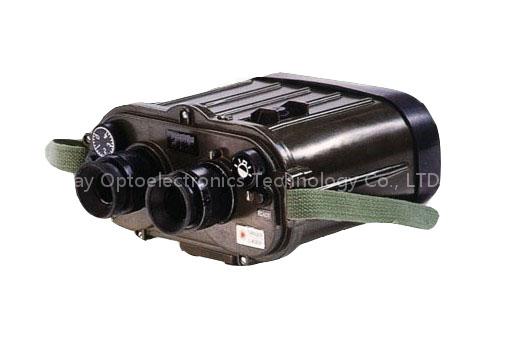

Medium-range laser range finder

CZ102 is combined with mature optical-electro-mechanical design to reach high reliability. Still working at high/low temperature test and vibration test and other harsh environment. High accuracy; Good repeatability; Ultra-compact design; easy operation. Easily integrated into other system through interfaces. It is a portable and standard device.

Main Technical Data 1.Wavelength: 1.064um 2. Measurement range: 80~5000m 3. Accuracy: ±3 4. Operating frequency: 4times/min, emergency: 10times/ min,break for 3minutes 5. Range Resolution: 30~50m 6. Angle Resolution: ≤1.3 mrad 7. Power Supply: DC7.4V 8. Operating Temperature: -40℃~+55℃, Storage temperature:-43℃~+65℃ 9.

Vibration: 5~100~5Hz/6min/cycle, four cycles 10. Impact: 150g/1m,shooting(optical axis)direction, consecutive three times. 11. Weight: 1.5kgFunctionsa.Functions: range finding,range gating,fault code. Interface: RS232,contain range finding instructions, multi-objective instructions, range gating, range output and fault code
