Listing ID#10053978
ModelET-G240128
CategoryLCD Modules

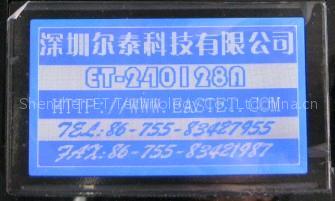

Medical Equipment LCD Module
Specifications
- Brand
- ET
- Origin
- Shenzhen, China
- Price Term
- FOB
Quick answer
Medical Equipment LCD Module is a LCD Modules product. Key specs — Brand: ET; Origin: Shenzhen, China; Price Term: FOB.
Product Description
- 15 characters x 8 lines COB character LCD module
- Overall dimension: 108x 67 x 12.0mm (max.)
- Viewing area: 81.4x42.4mm
- Transflective polarizer type (optional for reflective/transmissive)
- Bottom LED backlight (optional for side LED/EL backlight)
- Yellow green backlight color (optional for white/blue/red/amber colors)
- LCD STN yellow (optional for LCD TN/HTN/STN gray/STN blue/FSTN)
- Viewing angle: 6:00 o'clock (optional for 12:00 o'clock)
- Standard temperature range (optional for wide temperature)
- English-Japanese fonts (optional for Russian/European/Cyrillic/Hebrew fonts)
- Parallel interface
