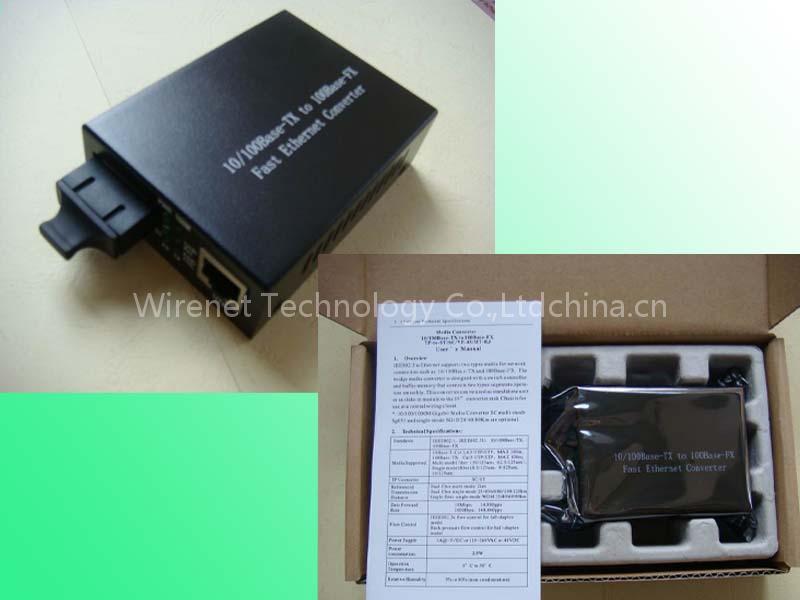

Media converter 10/100M
Specifications
- Brand
- wirenet
- Origin
- China
- Price Term
- FOB
Quick answer
Media converter 10/100M is a Fiber Optic Equipment product. Key specs — Brand: wirenet; Origin: China; Price Term: FOB.
Product Description
Media converter 10/100M
Skype:wirenettechnology
Features:
Supporting : Full duplex and half duplex transmission and capable of automatic negotiation. efficient built-in switching core ,to implement flow control and reduce broadcast packets.
Supporting : The transmission of extra-long packets over
VLAN Supporting : The selection of multiple types of fiber ports such as dual-fiber multi-mode .dual-fiber single mode and single fiber single mode, to satisfy the extended requirements of users.
Parameter:
| Parameter | Specifications |
| Access mode | 10/100Mbps |
| Standard | IEEE802.3 10Base-T Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
| Wavelength | 850nm/1310nm/1550nm |
| Transmission distance | Dual-fiber multi-mode: 2Km; dual-fiber single-mode: 25/40/60/80/100/120Km; single-fiber single-mode: 25/40/60/80/100Km Category-5 twisted pair: 100m |
| Port | One RJ45 connector, connected to STP/UTP category-5 twisted pair One fiber port: Multi-mode - SC or ST (fiber size: 50,62.5/125µm) Single mode - SC/FC fiber port (fiber size: 9/125µm) Single-fiber single-mode - SC/FC fiber port (fiber size: 9/125µm) |
| Conversion mode | Medium conversion, storing and forwarding |
| MAC address table | I K |
| Buffer space | 1Mbit |
| Flow control | Full duplex state: flow control; half duplex state: back pressure mode |
| Delay | 9.6us |
| Bit error rate | <1/1000000000 |
| MTBF | 100,000 hours |
| LED | Power TX link ( fiber link action ), TP LINK1000, TP LINK100, TP ACT ) FDX (FX full duplex mode), FX100 (Fiber, with a transmission rate of 100M) TP1/2/3/4 LINK/ACT (1/2/3/4-port twisted pairs connection action) TP1/2/3/4100 (1/2/3/4-port twisted pairs, with a transmission rate of 100M) |
| Power | AC220 0.5A/PC-48(builtin) |
| Power consumption | 5W |
| Operating temperature | -10~55ºC |
| Operating humidity | 5%~90% |
| Storage temperature | -40~70ºC |
Ordering Choice:
| Model | Working wavelength | Fiber | Electrical port | Fiber model | Tx power(dBm) | Rx power(dBm) | Transmission distance |
| WN-MC-110-SC-2S | 1310nm | SC | RJ-45 | Dual-fibe Multi-mode | -22 to -12 | = -30 | 2km |
| WN-MC-110-SSC-25S | 1310nm FP | SC/FC/ST | RJ-45 | Single modeDual -fiber | -15 to -8 | = -37 | 25km |
| WN-MC-110-SSC-40S | 1310nm FP | SC/FC/ST | RJ-45 | Single mode Dual-fiber | -8 to -3 | = -37 | 40km |
| WN-MC-110-SSC-60S | 1310nm FP | SC/FC/ST | RJ-45 | Single mode Dual-fiber | -3 to 0 | = -37 | 60km |
| WN-MC-110-SSC-80S | 1550nm DFB | SC/FC/ST | RJ-45 | Single modeDual-fiber | -8 to -3 | = -40 | 80km |
| WN-MC-110-SSC-100S | 1550nm DFB | SC/FC/ST | RJ-45 | Single mode Dual-fiber | -3 to 0 | = -40 | 100km |
| WN-MC-110-SSC-120S | 1550nm DFB | SC/FC/ST | RJ-45 | Single mode Dual -fiber | 0 to 3 | = -40 | 120km |
| WN-MC-110S-SC-25S | 1310/1550nm | SC | RJ-45 | Single mode single-fiber | -13 to -8 | ≤ -36 | 25km |
| WN-MC-110S-SC-40S | 1310/1550nm | SC | RJ-45 | Single modeDual-fiber | -8 to -3 | ≤ -36 | 40km |
| WN-MC-110S-SC-60S | 1310/1550nm | SC | RJ-45 | Single mode Dual-fiber | -10 to -5 | ≤ -36 | 60km |
| WN-MC-1110S-SC-80S | 1310/1550nm | SC | RJ-45 | Single mode Dual -fiber | -5 to -3 | ≤ -36 | 80km |
