Media Converter Rack is a Power Accessories product. Key specs — Origin: China (Mainland).
Product Description

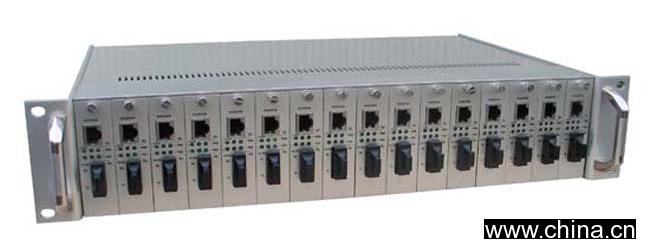

Model No.:NT-R16D Product Origin:China Brand Name:N-net Price Terms:FOB Payment Terms:T/T Certification:ISO9001 Description:Maximum 16 sets of 10M, 100M, 10/100M, 1000M multimode, single mode, single core media converter cards and built-in Avional media converters' cards can be installed in one frame under uniform power supply.
This not only reduces the number of tie wires and simplifies the structure, but also facilitates easy management and maintenance. Its shell is Avional, AC 220V, DC 48V and single power supply, double power supply are optional.
You can configurate the 16 slots with 15 card slots and 1 network management card.Product features: 1.16 slots standard 19" 2U casing, can be installed in the cabinet of equipment room for uniform management and maintenance2. Dual fans for air exhaust, excellent thermal diffusivity3. Supports plug-and-play of optical transceiver4.
Well shielded power supply prevents electromagnetic signal caused by power supply from intervening the normal operation of module5. Optional switching power supply supports stable and long time operation, provides over-voltage and over-current protection, with ripple and noise less than 50mVTechnical parameters: 1. Amount of slots: 16 slots2.
Power supply parameter: outside: 5V DC, 1A, built-in: AC 100 - 250V, 50 - 60Hz3. Environmental temperature: Working temperature range: 0°C ~ 50°CStorage temperature range: -20°C ~ 65°C4. Relative humidity: 5 ~ 90% 5. Dimensions: 485 x 245 x 90mm, 9" 2U height
