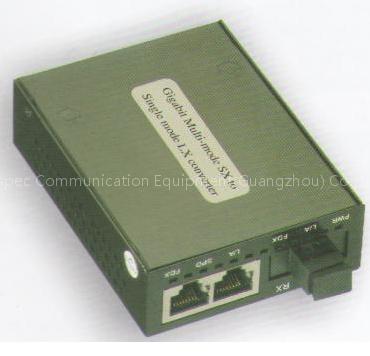

Media Converter is a Fiber Optic Equipment product. Key specs — Origin: China (Mainland).
Product Description
Working modes: full-deplexes; half duplex auto negotiation.
Features: 1. Compliant with IEEE 802.3ab 1000Base-T standards for TP connection, and IEEE802.3z 1000Base-SX/LX Standards for fiber connection. 2. Provides fiber-optic port with SC connector. 3. Extends fiber-optic distance up to 550m (multi-mode) and 10km,20km,40km,80km (single mode fiber). 4. Provides 1000Mbps port with RJ-45 Connector. 5.
Extends the Ethernet distance by converting UTP to Fiber-optic. 6. Status LEDs for activity & link to easily monitor network activity.
Ordering Information:
OP-ECM74221-0.5: 1000BASE-T to 1000BASE-SX Converter, 550m Multi-mode, SC.
OP-ECS74221-10: 1000BASE-T to 1000BASE-LX Converter, 10Km Single-mode, SC.
OP-ECS74221-20: 1000BASE-T to 1000BASE-LX Converter, 20Km Single-mode, SC.
OP-ECS74221-40: 1000BASE-T to 1000BASE-LX Converter, 40Km Single-mode, SC.
