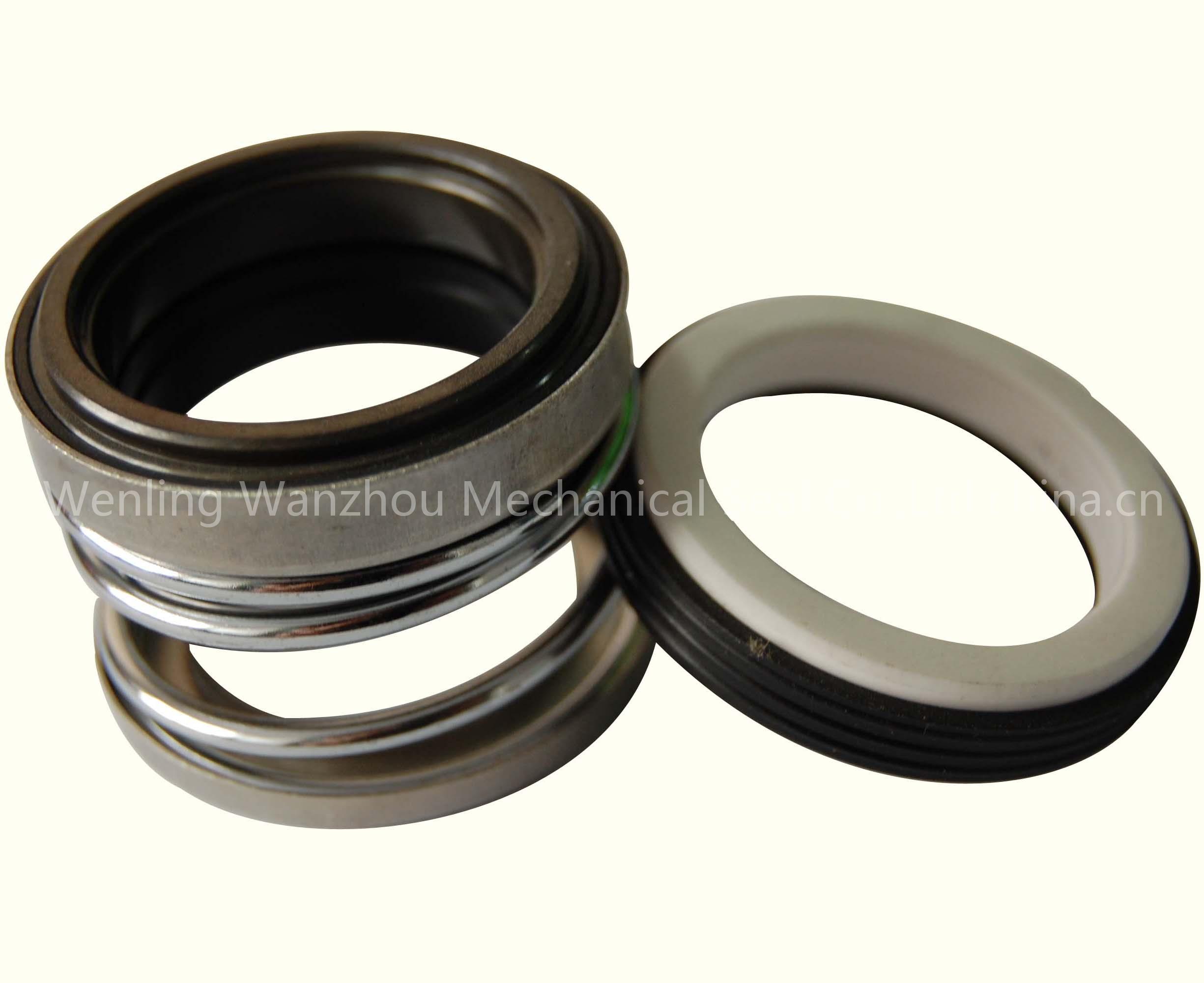

Mechanical seal for pump (WZ108-30)
Listing ID#10136130
Model108-30
CategorySeals
Seals

Mechanical seal for pump (WZ108-30)

Specifications

Brand
Wanzhou
Origin
China
Request Quote
Quick answer

Mechanical seal for pump (WZ108-30) is a Seals product. Key specs — Brand: Wanzhou; Origin: China.

Product Description

Single Face ; Unbalanced Seal; Elastomer Bellows Used in the water pumps and agitator pumps. 1.Material Stationary Ring: Ceramic/SIC/TC Rotary Ring: Carbon/SIC/TC Secondary Seal: NBR/EPDM/VITON Spring & Other parts: S.S 2.Apply Range: Annular Seal Pressure :P≤0.6MPa Annular Seal Temperature :t= -20oC ~ 80(150)oC Velocity :vg≤8m/s
