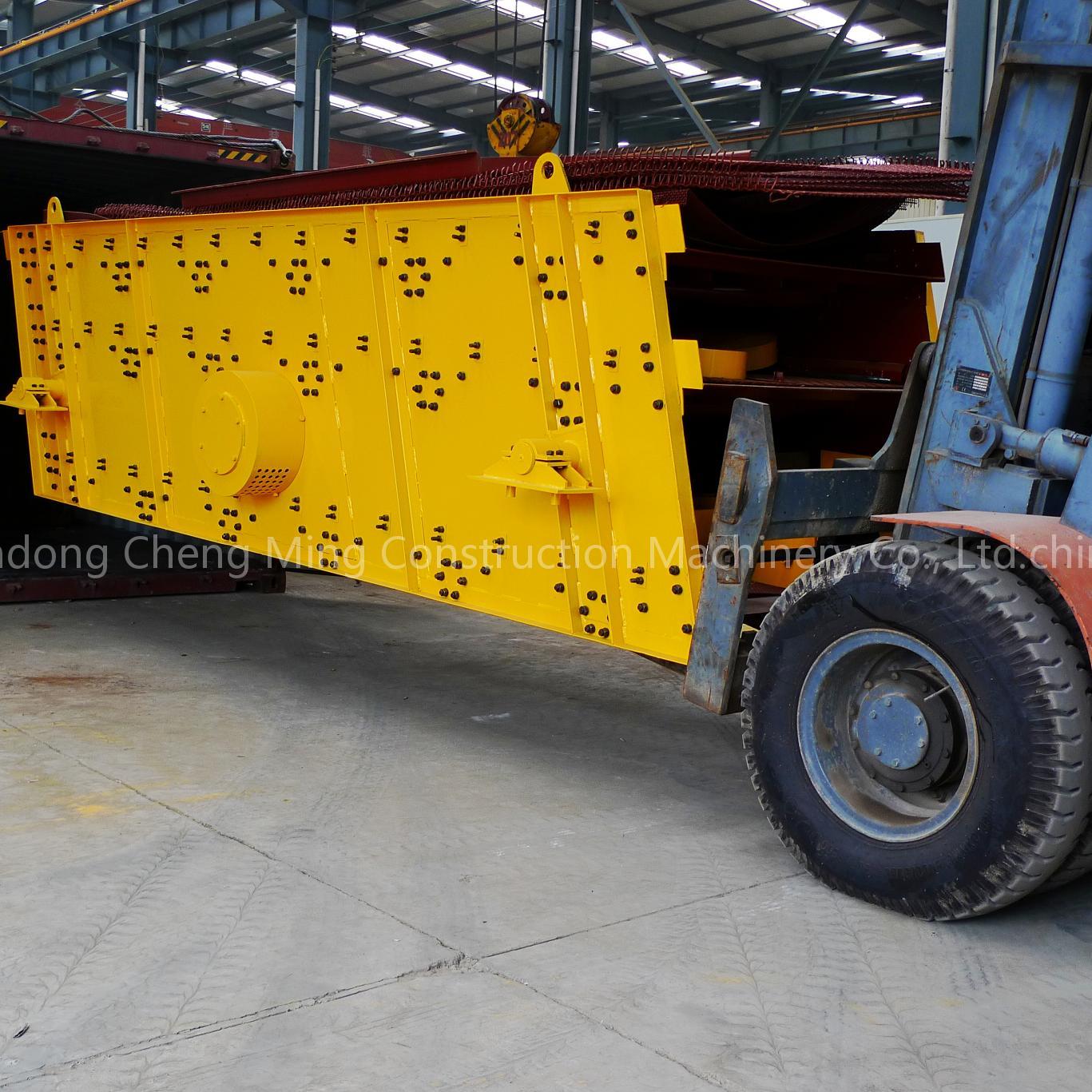

Material Handling Equipment,Vibrating Screen
Specifications
- Brand
- shandong shanyuan
- Origin
- Shandong ,China
- Price Term
- FOB
Material Handling Equipment,Vibrating Screen is a Mining and Metallurgy Projects product. Key specs — Brand: shandong shanyuan; Origin: Shandong ,China; Price Term: FOB.
Product Description
Performance Features of Material Handling Equipment,Vibrating Screen:
1. The motor adopts type coupled axle machine, preventing the motor being damaged for twisting when it starts.
2. Adopt rubber spring, the whole machine's operation is stable and reliable, the operating life is long.
3. Adopt combined exciter and cardon movement, to assure the operation simultaneous, and exclude the phenomenon of bearing affecting the operating life as its coaxial degree is not very good.
4. Adopt air-cooling craft, reducing the bearing temperature, prolonging the bearing's operating life.
5. Adopt high-strength bolted combination craft, making the sieve body's operating life more durable under the full vibration.
Specifications of Material Handling Equipment,Vibrating Screen :Model | Number of Layers of Screen | Dip of Groove Surface (°) | Capacity (t/h) | Motor power (KW) |
YK-1548 | 1 | 20 | 50-200 | 11 |
2YK-1548 | 2 | 20 | 50-200 | 11 |
3YK-1548 | 3 | 20 | 50-200 | 15 |
4YK-1548 | 4 | 20 | 50-200 | 18.5 |
YK-1860 | 1 | 20 | 80-280 | 18.5 |
2YK-1860 | 2 | 20 | 80-280 | 18.5 |
3YK-1860 | 3 | 20 | 80-280 | 22 |
4YK-1860 | 4 | 20 | 80-280 | 22 |
2YK-2160 | 2 | 20 | 100-450 | 22 |
3YK-2160 | 3 | 20 | 100-450 | 30 |
4YK-2160 | 4 | 20 | 100-450 | 30 |
