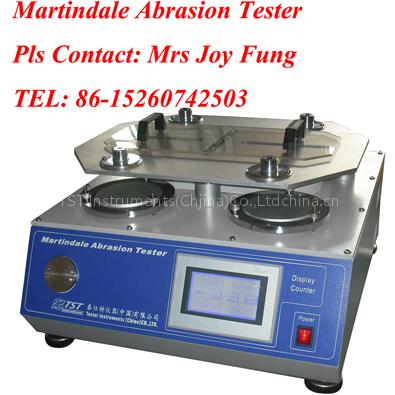

Martindale Wear & Abrasion Tester

Martindale, Martindale Wear &Abrasion Tester, Martindale Pilling &Snagging Tester, testing machine Usage: Martindale Pillin&Snagging Tester Control and Toch Screen or LCD Counter display 2.Models:4,6,8,9 Heads 3.Friction relative speed:502rpmSpecifications This machine is testing wear-resistance property of textiles, footwear, etc. ... testing 4 specimen at the same time.Note: We can offer the Martindale with 4,6,,8,9 heads according to your requirment.

Tester summary This machine is testing wear-resistance property of textiles, footwear, etc. ... testing 4 specimen at the same time, At testing the hammer mill alway change its orientation (lissajious), repeated abrase specimen until reach a certain times and then to measure its frictional property. corresponding standard:BS-3424,ASTM-D4966,DIN-53863,SATRA TM31,ISO-20344 Applicable Industry: textile, rubber, leather, synthetic leather, shoes, etc.

Technical parameters Model TSE-A012

specimen 44±1mm×4

load 595g 795g

count Electronic

Volume 56.5×56.5×45cm

Weight 40kg

Power AC220V, 0.6A

Accessories 9 KPA weight 12 KPA weight Sample load weight
