Marking Machine is a Other Laser Equipment product. Key specs — Origin: China (Mainland).
Product Description

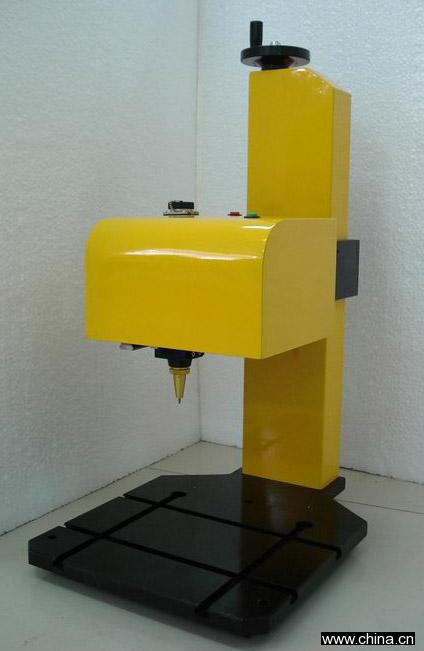

Model No.:XG5-A Product Origin:China Brand Name:Xin Guang Price Terms:EXW, FOB Payment Terms:T/T Certification:ISO9001 Description:Description:Pneumatic marking machine-combined with computer, electrical and precision machinery techniques.
It is industrial marking equipment which can make logo (character, VIN code, serial number, date and graph) on workpiece (metal or no-metal materials) permanently.
Computer controls the pin to move in X-Y planeand mark the logo on the certain location of characters: Marking contents: all kinds of logos (characters, serial numbers, VIN codes, datesand metal or non-metal material (hardness under HRC60)High stability labor controls engine case Computer part adopted 15" LCD screen Adopts M20 load linear bearing, hardness workpiece marking is more suitableSupports plane marking Marking contents could be saved automatically and not be destroyed due to the electric-breakSupports Windows98/XP/MESupports multi-kinds fond: MG Fond, SHX Fond in Auto CAD, CHR in Borland, TTF inWindowsSupports DXF format graph from CAD, CorledrawThe design of block-out controlling cabinet benefits for damp-proof, dust-proof,shake-proof, it could be used in the wicked working conditionMain tech-specifications:Marking speed: 30-40mm/sHitting frequency: 300HzMarking depth: 0.1-1mm (according to workpiece material)Marking accuracy: 0.02mmMarking scope: 100 x 80mm (supply scope is allowed)Pinhead hardness: HRA92Workpiece hardness allowed: ≤HRC60Inputting air pressure: 0.3-0.6MPaPower consumption: ≤500WVoltage: AC220±10%, 50HzWorking temperature: 0°C-40°CRelative humidity: ≤90% Applications:It is adequate for marking characters, serials numbers and VIN codes on automobileor bodywork of motorcycles, car frames, automotive chassis, connecting rods, engines,cylinder various stepper motors and mechanical parts, machine tools, metalpipes, pump bodies, valves, fastening pieces and various hard plastic products.
