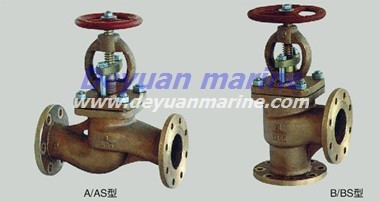

Marine flange bronze stop valve
Specifications
- Origin
- china
- Price Term
- EX-Work
- Payment Term
- T/T
Marine flange bronze stop valve is a Industrial Power Supplies product. Key specs — Origin: china; Price Term: EX-Work; Payment Term: T/T.
Product Description
Marine flange bronze stop valve
are leading supplier of different type of marine valve,we can offer marine gate valve,marine globe valve,marine butterfly valve,marine check valve etc with GB standard,JIS standard,DIN standard,API、ANSI,BS standard etc.Pls contact us for more details.
Nominal pressure (Mpa) Nominal diameter
(mm) Applicable medium
0.6 15~150 Water,fresh water,lubricating oil,fuel oil,t≤250℃ steam
1.0 65~150
1.6 65~150
2.5 15~125
Parts name Material
Name Marks
Body/cover/disc Cast tin bronze ZCuSn10Zn2,ZCuSn5Pb5Zn5
stem Aluminum bronze CuA19Mn2
PN 1.0,1.6,2.5Mpa A type B type dimension
(Mpa) DN
(mm) Structure dimension Weight(kg)
L H≈ H1
A type B type A type B type B type A type Btype
1.0 65 290 115 309 275 115 14.6 12.6
80 310 125 345 298 125 18.9 17.1
100 350 150 374 325 135 28.1 23.2
125 400 175 426 372 155 38.0 35.2
