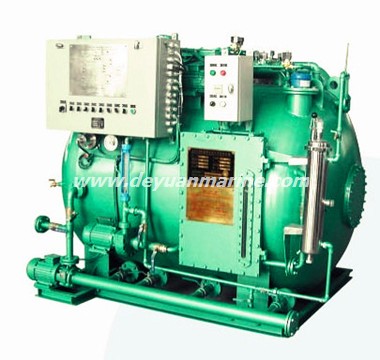

Marine Sewage Treatment Plant

is a professional supplier of marine equipment,such as 15ppm bilge separator,15ppm oily water separator,15ppm bilge alarm,oil content meter,marine sewage treatment plant etc.Pls contact us for more details if you are interested.

Main Technical Table

Model 15 20 25 30 40 50 60 80 100 150 200 250

Load Average load

L/d 1190 1540 1890 2310 3080 3780 4480 6020 7700 11200 14700 18200

Peak load

L/h 149 193 237 289 385 473 560 753 963 1400 1838 2275

Organic load

kgBOD5/d 0.595 0.77 0.945 1.155 1.54 1.89 2.24 3.01 3.85 5.6 7.35 9.10

Rated capacity(P) 15 20 25 30 40 50 60 80 100 150 200 250

Max capacity(P) 17 22 27 33 44 54 64 86 110 160 210 260

Electricity AC380V, 50HZ, 3φ/AC 440, 60Hz, 3&#966

Power(KW) 1.5 1.5 1.5 1.5 1.5 2.0 2.0 2.5 2.5 3.0

External dimensions

L*W*H(mm) 1550×

1400×

1600 1650×

1400×

1600 1850×

1500×

1635 1950×

1500×

1635 1800×

1700×

1900 1900×

1700

1950 2100×

1700×

2000 2500×

1900×

2150 2500×

1900×

2300 3150×

2400×

2300

Weight

Dry weight

(Kg)

1150 1200 1250 1350 1500 1750 1950 2150 2900 3800

Wet weight

(Kg)

2600 2933 3210 3928 4689 5665 6486 8100 10400 14680

Discharge standard TSS35mg/L, BOD525mg/L, COD125mg/L, Coli form100pcs/100ml, PH:68.5
