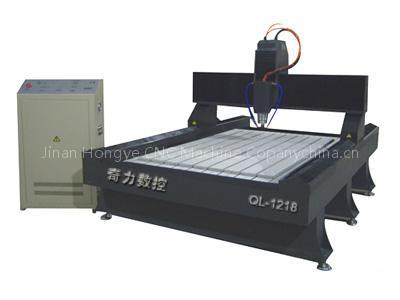

Marble/Stone CNC Router

1>imported linear square rails, dual four slider, loading capacity, smooth operation and high precision, long life, under the knife precision.
2> The Stone/Marble CNC Router seamless welded steel structure, rigid Haobu deformation, table back lining plate, the rigid strength, and machine loading capacity can be
3>constant power spindle motor, cutting intensity, high efficiency.
4>software compatibility, and compatible with Typ3/Artcam/Castmate / Wentai, and other CAD / CAM design software
5>two-way tool cooling system, effectively raising tool life

Scope:
Granite, marble, Qingshi, sandstone, and other stone carvings
Granite and other hard stone carving to be at level 5 mm
Marble, Qingshi, can be a sculpture to 5 mm

Machine Model	QL1218
X.Y working area	1200*1800mm
Z working area	120mm
Table	1400*2300mm
Max. Speed	6m/min
Max. working speed	8m/min
Working delicacy	0.005mm
Repositioning accuracy	0.05mm
Command	G code*.u00*.mmg*.plt
Surroundings for software	windows98/2000/xp
Power (spindle is not included)	1500w
Working voltage	AC3800V/50Hz
Spindle power	3.0kw
Spindle rotating speed	0-24000rpm/min
Drive motor	Steper
