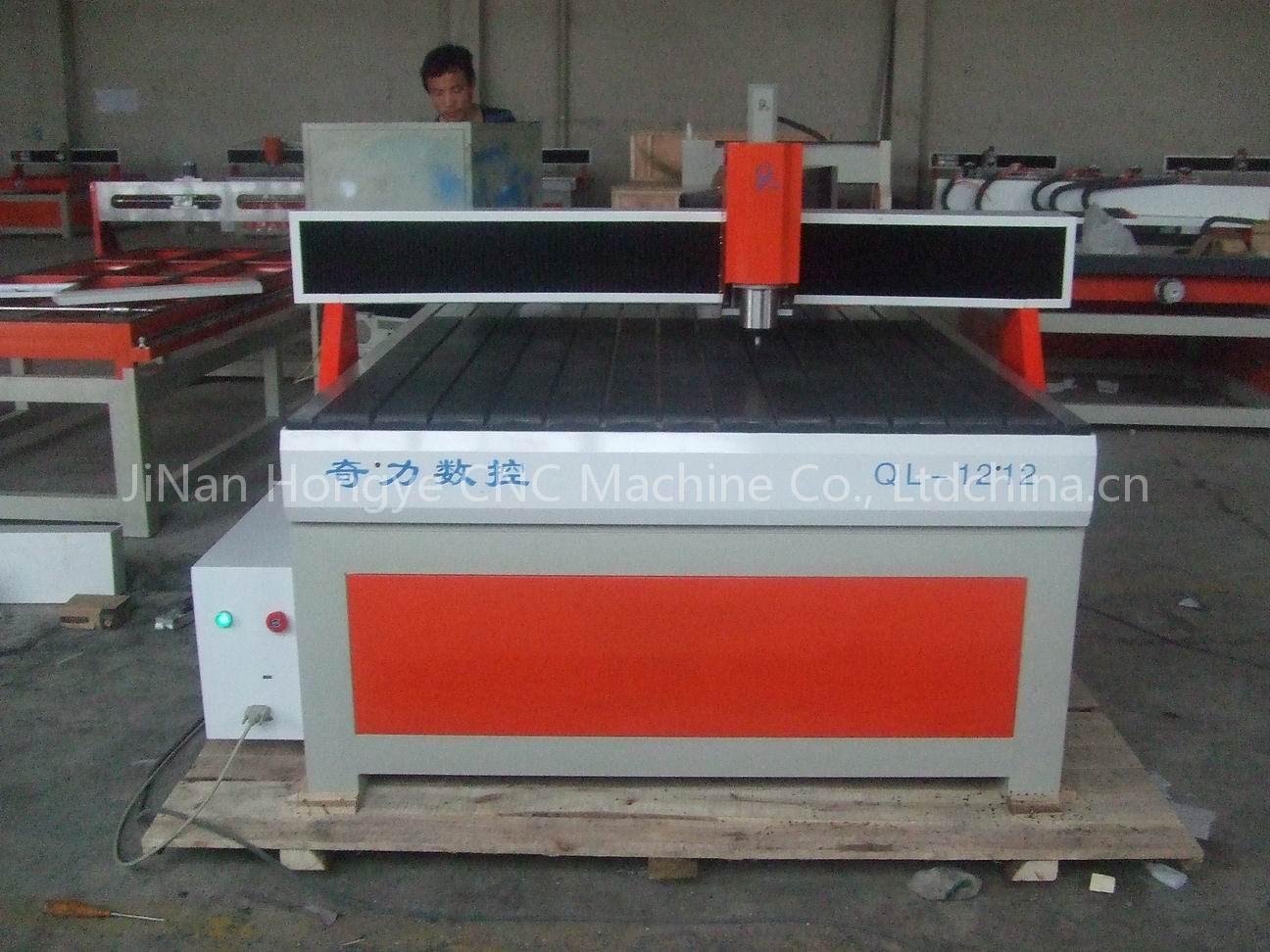

Marble CNC Router
Listing ID#10061799
ModelQL1212
CategoryOther Farm Machines
Other Farm Machines

Marble CNC Router

Specifications

Brand
QL
Origin
China
Price Term
FOB
Request Quote
Quick answer

Marble CNC Router is a Other Farm Machines product. Key specs — Brand: QL; Origin: China; Price Term: FOB.

Product Description

Marble CNC Router
Characteristics: 1, a three-axis linear guide running smoothly, and high precision.
2, complete machine using seamless welding steel structure, rigid, and no deformation, the dorsal surface lining plate, strength, steel and good.
3, constant power spindle motor, cutting intensity, high efficiency.
4, the U-disk embedded control system completely offline to work more convenient and flexible.

Capacity:

Machine ModelQL1212
X.Y working area1200*1200mm
Z working area120mm
Table1300*1420mm
Max. Speed6m/min
Max. working speed4m/min
Working delicacy0.005mm
Repositioning accuracy0.05mm
CommandG code*.u00*.mmg*.plt
Surroundings for softwarewindows98/2000/xp
Power (spindle excluded)1500w
Working voltageAC220V/50Hz
Spindle power2.2kw
Spindle rotating speed0-24000rpm/min
Drive motorSteper
