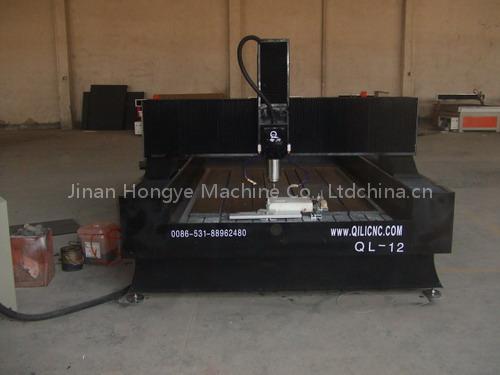

Marble CNC Machinery

1>imported linear square rails, dual four slider, loading capacity, smooth operation and high knife precision.
2> The entire machine seamless welded steel structure, rigid Haobu deformation, table back lining plate, the rigid strength, and machine loading capacity can be
3>constant power spindle motor, cutting intensity, high efficiency.
4>software compatible with Typ3/Artcam/Castmate / Wentai, and other CAD / CAM design software
5>two-way tool cooling system, effectively raising tool life

Appliable Fields:
1, stone crafts, make relief, scrupture, big statue, pottery and porcelain decration, etc.
2. Advertising industry: Large advertising signs, acrylic brands, tableets, calligraphy, 3D characters, garden or wall decoration, logo, acrylic cutting, forming system module, billboard field, characters cutting, plate, LED/neon channel, literal-hole cut, blister Lightbox mold, stamp, mould.
3, die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4, others: Large-scale relief sculpture, video carving, craft and gift, widely used in process industries gifts.

1.	X.Y working area	1200*1800mm
2.	Z working area	>120mm
3.	Table	1440*3000mm
4.	operating speed	8m/min
5.	carving speed	6m/min
6.	Resolution	0.01mm
7.	Repeat positioning accuracy	0.05mm
8.	Feeding height	120mm
9.	Command	G code*.u00*.mmg*.plt
10.	Surroundings for software	windows98/2000/xp
11.	Power(exclude spindle)	1500w
13.	Work voltage	AC220V/50Hz
14.	Spindle power	2.2KW
15.	Spindle rotating speed	24000rpm/min
16.	Work Mode	Stepper
