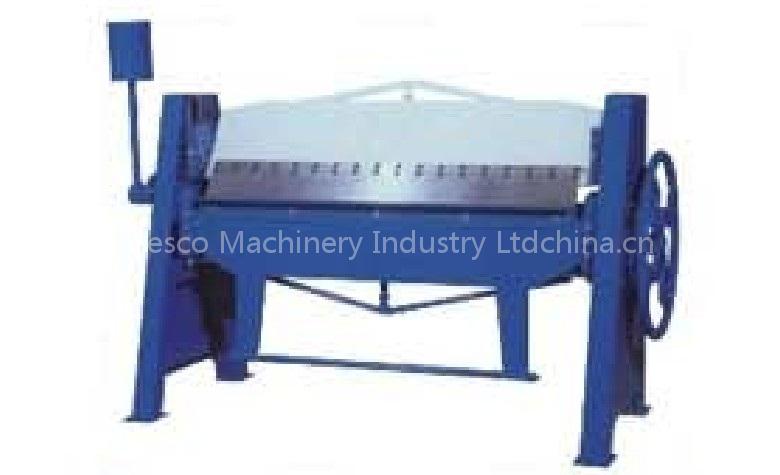

Manual Folding Machine

Model	Bending Length (mm)	Folding Thickness for mild steel (mm)	Folding angel	Weight (kg)	Dimension (mm)
WS1.5*13000A	1300	1.5	40	395	1850*710*1400
WS1.5*13000B	1300	1.5	60	430	1960*800*1360
WS1.5*1500A	1500	1.5	40	430	2000*710*1400
WS1.5*1500B	1500	1.5	60	525	1920*800*1360
WS1.5*2000A	2000	1.5	40	600	2720*820*1360
WS1.5*2000B	2000	1.5	60	580	2570*730*1400
WS2*1300B	1300	2	60	510	1920*840*1350
WS2*1500B	1500	2	60	630	2300*830*1350
WS2*2000B	2000	2	60	1150	2860*900*1600

A.40 degree bending angle and whole blade.B.60 degree bending angle and divided blade.The manual folding machine uses steel welded structure.The manual folding machine has strong bracketed structure.The manual folding machine is simple designed.The manual folding machine is easy to adjust.Through adjust the manual folding machine can make different shape.
