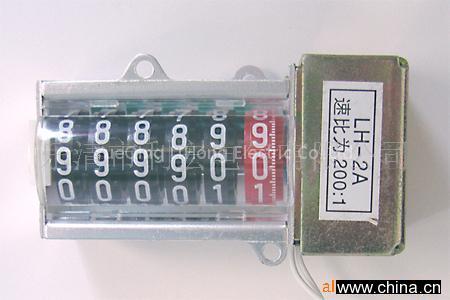

Magnetism Couonter, roller register, impulse counters, wheel counter
Listing ID#10136509
CategoryIndustrial Power Supplies
Industrial Power Supplies

Magnetism Couonter, roller register, impulse counters, wheel counter

Specifications

Brand
Lihong
Origin
china
Request Quote
Quick answer

Magnetism Couonter, roller register, impulse counters, wheel counter is a Industrial Power Supplies product. Key specs — Brand: Lihong; Origin: china.

Product Description

1.Rated voltage amplitude:4±0.5V2.Working Pulse:≥80ms;3.Rating Pulse Interval:≥50MS;4.Resistance of Coll:430± 5%ohm;(23oC);5.Stepper motor Driving torque:3u Nm;6.Rating working frequency≤3HZ7.Trouble-free period:≥1 billion pulse;8.Sepecification:5 integer with 1 decimal fraction;9.Highest working speed of counter:Step 6/sec;10.Counter Ratio:20:1;40:1;80:1;100:1;200:1;400:1;800:1 11.Working temperature:-40oC--70oC;12.Fixing Size:upper--35 ×24.5mm;Underside-- 30.5×30.5mm.
