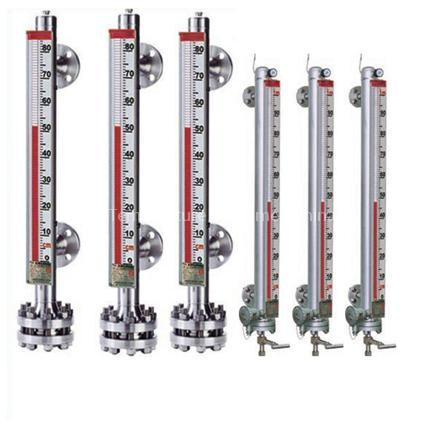

Magnetic Level Gauge

UJZ Series Magnetic Level Gauges are designed and manufactured by JIEDA improved by absorbing foreign advanced technology and based on Chemical Industry Department Standard HG/T21584-95. It can be applied to petroleum, chemical, pharmaceutical industry. No blind area in whole measuring area. While matched with Alarm and Level Transmitter, the liquid level can be transferred into 4-20mA DC standard signal to realize remote alarm.

Features:

1, Clear in reading, eye-catching, no false level.

2, Can be equipped with transmitter and alarm device to measure liquid level or ineterface.

3, Wide measuring range.

4, Good seal, reliable and safe.

5, Resistance to corrosion, easily installed.

6, Imported pottery magnetic, intensive magnetism, long life, temperature up to 300 °C.

Main technical parameters

Measuring range: 0-17m

Accuracy: ± 5-10mm

PN: 0.6-10MPa

Medium viscosity: ≤ 150cp = 200cst crystallize the choice for heating, insulation type liquid level gauge, low-temperature liquid level meter can be polyurethane insulation.

Medium Density: ≥ 0.45g/cm3

Flange preparation is up to customers, flange making is based on the standard HG20592-95 PN1.6-10MPa DN20

Alarm switch

Power: AC220V/50Hz

Working life: > 105

Explosion proof hose interface; M20 × 1.5 thread

Remote Transmission Device

Output signal: 4-20mA

Supply voltage: equipped with 24V DC power supply

Explosion proof hose interface: M20 × 1.5 thread

Note

1, the upper limit alarm switch plus a final

2, lower limit alarm switch finally add b

3, lower limit alarm switch finally add c

4, the remote device finally add c
