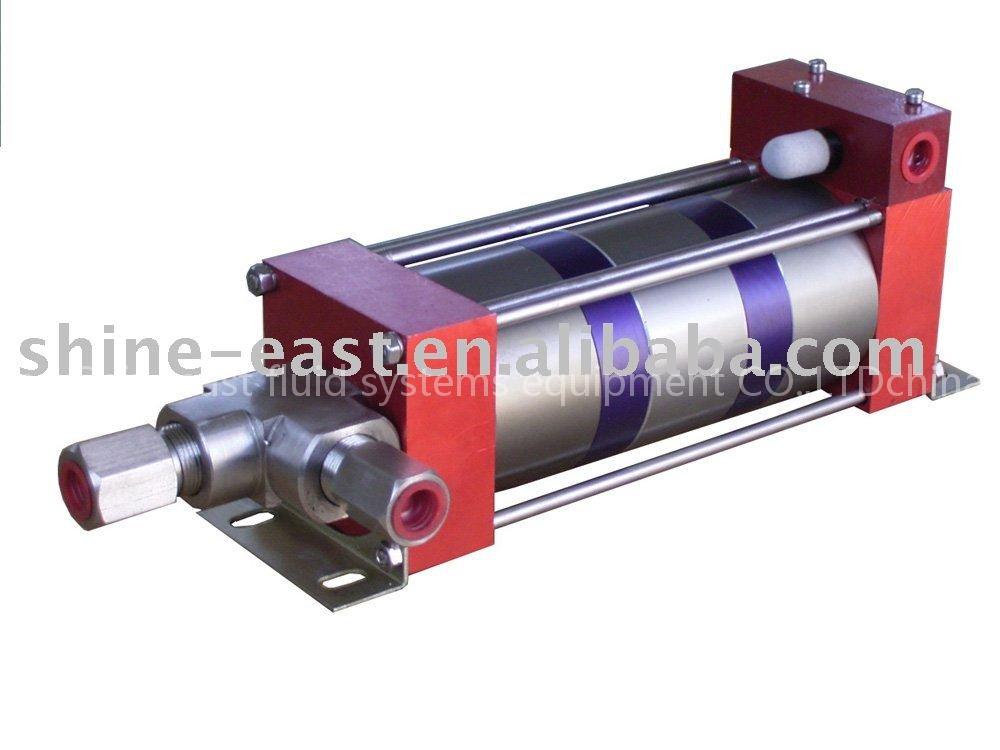

M**-3 air driven hydraulic pump

Air Driven Hydraulic Pump Safe,Rugged-triple heads Pressure range:240~408Mpa Two ratios available Best price,high quality M**-3 Series air driven liquid pumps are high pressure reciprocating plunger pumps of single acting, triple air drive heads model.

Air drive pressure from 1bar(14.5 psi) to 8bar(116 psi) maximum.Compared with the single acting single air head M series, they reach triple pressure at the same air drive pressure. Provide for super high pressure up to 4,080 bar(59,160psi).

Key features One model available in 2 ratios Compability with a variety of liquids Air driven - no electricity required and explosion proof Aluminum bodies and wetted materials of carbon steel or stainless steel Super high pressure available High quality seals, long service life available No need for air line lubrication M**-3 Series pumps come standard with bottom inlet Technical parameters &nbsp Type

Pressure Ratio

MAX Outlet Pressure (bar)*

Connection Inlet A

Connection Outletlet B

Flow (L/min)

M100-3

300:1

2400

3/8&quot

3/8&quot

0.24

M170-3

510:1

4080

3/8&quot

3/8&quot

0.13

Note:All data based on air drive pressure of 6 bar. *at drive air of 8 bar. Please consult us for printable dimensional drawings and performance charts for M**-3 series pumps sized to your specific application parameters. Ms.Angela Hou mob:86-15552899762
