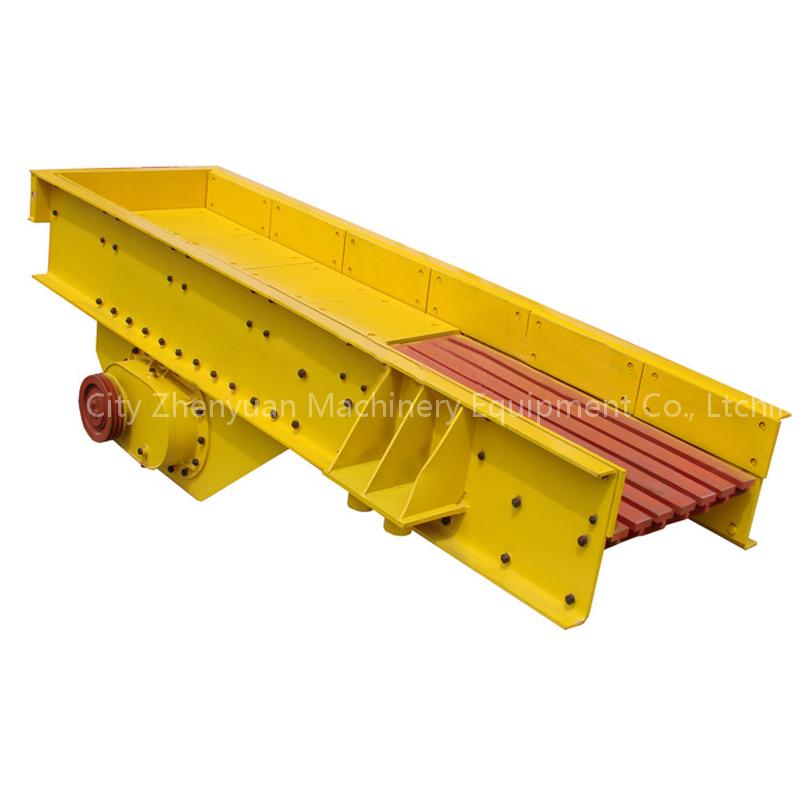

MZG-II Series Vibrating Feeder
Specifications
- Brand
- ZY
- Origin
- China
- Price Term
- FOB
MZG-II Series Vibrating Feeder is a Mining Machinery product. Key specs — Brand: ZY; Origin: China; Price Term: FOB.
Product Description
MZG-II series vibrating feeder is an improved feeding equipment, it is widely used to feed the bulk, granular and powder materials continuously, homogeneously, quantitatively into the receiving device from the storage silo or hopper. Commonly used to metallurgy, coal, chemicals, construction building, ceramics, abrasives, food and other industries.
Features
Compared to MZG, general motor drive the vibrator as vibration source, so the motor does not vibrate, makes the motor longer service life. There is larger adjusted range of vibrator, so adjust the capacity in a larger range, especially this series machine used to the workshop which needs larger capacity.
Technical parameters
Model | MZG 130 | MZG 150 | MZG 170 | MZG 180 | MZG 200 | MZG 220 | MZG 250 | MZG 280 | ||
Feeding trough size | L(mm) | 1800 | 1800 | 2200 | 2200 | 2500 | 2500 | 3000 | 3000 | |
W(mm) | 1300 | 1300 | 1700 | 1800 | 1300 | 1500 | 1700 | 1800 | ||
Feed grain size (mm) | 0-300 | 0-300 | 0-300 | 0-300 | 0-500 | 0-500 | 0-500 | 0-500 | ||
Installation slope (°) | 5-15 | 5-15 | 5-15 | 5-15 | 5-15 | 5-15 | 5-15 | 5-15 | ||
Double Amplitude(mm) | 6-12 | 6-12 | 6-12 | 6-12 | 6-10 | 6-10 | 6-10 | 6-10 | ||
Capacity(t/h) | Coal | 400-700 | 600-1000 | 820-1350 | 820-1400 | 1100-1800 | 1300-2000 | 1600-2300 | 2100-3000 | |
Motor | Model | YB132S-6 | YB132M1-6 | YB132M2-6 | YB132M2-6 | YB160M-6 | YB160M-6 | YB160L-6 | YB180L-6 | |
Rev(r/min) | 960 | 960 | 960 | 960 | 960 | 960 | 960 | 960 | ||
Power (KW) | 2×3.0 | 2×4.0 | 2×5.5 | 2×5.5 | 2×7.5 | 2×7.5 | 2×11 | 2×15 | ||
Welcome your inquiry! Please feel free to contact me for details!
