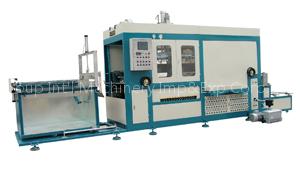

MX660*1220 AUTO HIGHT SPEED VACUUM FORMING MACHINE

MX type automatic high-speed plastic machine adopts high quality elements (such as NRGREN, OMTON,SIMERS),and the control greatly improves the pertormance of the whole machine and it ensures high-quality product.

1. automatic operation, convenient and simple.

2. Digital time control, accurate and stable.

3. Manual and automatic switch, fast and precise .

4. Middle brake design easy to commission,

5. Central lubrication system, central gas adjustment system

6. Exchangeable loading design for continuous loading, unnecessary to stop while film development ,improving efficiency.

7. Special infrared heating brick and individual temperature control ensuring quality

8. Special raising and dropping mould, secondary blowing, secondary vacuum function, delay vacuum, electromagnetic brake and other special designs, making the product with constant quality.

9. Separated cooling water supply system, inlet cooling and atomization spraying gun, match double direction powerful blowing machine to effectively improve production rate and cooling time of mould.

INDUSTRY AND USE:

1. Applicable plate material

All color plate materials ,such as PET, PVC, PS, PP, etc; pile coating plate materials, environmental protection plate materials ,such as APET ,PETG ,etc ; light degradable materials ,bio-degradable materials.

2. Applicable industry

Produce snack box, fruit tray , biscuit box ,toothbrush ,battery , gift, little hardware ,stationary, decorative article , pill , tablet and other packages.

Model	MX660×1120
Forming width	Fit one adjustable mold plate (560-660mm)
Forming length	750-1120mm
Bottom Plate Journey	350
Electric Hot Oven	24kw
Fan motor	2.2kw
Vacuum pump(m3/h)	100
Chilling Spray	8UNIT
Chiller System	50,000BTU
Heating system	Infrared-ceramics heater 60pcs
Temperature system	60 groups temp.Control
Electric supply	380V/50Hz
Overall dimensions (L×W×H)	6500×1600×2000mm
Weight	4.2ton
