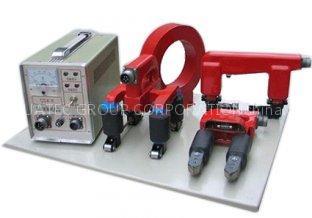

MT Flaw Detector Of Magnetic Particle Testing

Specifications

Request Quote

Quick answer

MT Flaw Detector Of Magnetic Particle Testing is a PDAs product. Key specs — Origin: China (Mainland); Price Term: FOB.

Usage: For aviation, , space flight, railway, automotive, ship, pressure vessel, mechanical industry etc.

Main specification

Model	HCDX-I	HCDX-II	HCXX-E	HCJE-A	HCJE-D
Power	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ	220V 50HZ
Magnetic type	AC/DC	AC	AC	AC	AC/DC
Probe	Aã€D	Aã€Dã€Eã€O	E	A	D
Total weight	15kg	20kg	10kg	8kg	8kg
Elevating power	Type Aã€D≥4.5kg；Type E≥12kg
Polar distance	Type A：10-180mm；Type D：10-210mm；Type E：10-100mm； Type O：ID.120mm
