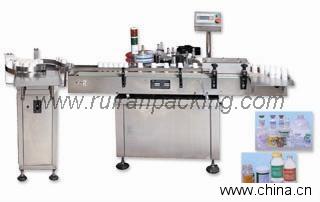

MPC-AS Wrap-around Labeling Machine (PLC-controlled)

MPC-AS Wrap-around Labeling Machine (PLC-controlled) MPC-A Wrap-around Labeling (Normal controlled) Instruction: suitable for independently operation or streamline production Application: glass bottle, plastic bottle etc, whose shape could be round, square or taper Warning function: warning by no color showed or the sign missed Bottle size: φ10-φ120mm, height 20-300mm Label length: height 15-150mm, length 25-300mm Paper-roll inside diameter: φ76mm Paper-roll outside diameter: φ300mm(max.) Labeling speed: 120-250 bottles/min Allowance: ±1mm(depending on the roundness and verticalness) Rated voltage: 220V, 50/60HZ, 1.2KW Weight: main machine 220kg, rotating plane 60kg Outside size: 1500*800*1300mm
