MMS camera video surveillance home security

Overview

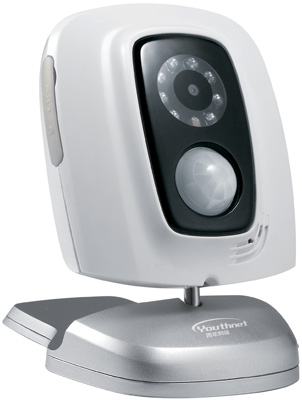

GSM Remote Camera supports with GSMwork, transmits and receives data via SMS and transmits image data through GPRS. It is wireless terminal, easy to install. It supports motion detection and PIR body detector, it can detect any movement or any uninvited people within monitoring area and make alarm via sending MMS (Multimedia Message Service) to pre-set mobile phone or E-mail. GSM Remote Cameras allow connecting up to 15 sensors to monitor several areas at the same time. The backup lithium battery ensures constantly operation when external power failure.

What is included

one (1) GSM remote camera, GPRS alarm monitor host

two (2) Wireless remote controllers

one (1) power adapter, input AC 110V or AC 220V

Application

1.Use at home.

Install near doors, windows and other areas you want to protect

Protect your family and assets

Detect fire and gas leaks and send alarm notification

Monitor your house when you are away

2.Monitor private outdoor areas, garage, car ports, driveway gates etc.

3.Monitor various locations.

Monitor your

Yachts and boats

Hotel rooms

office, factory

shop

holiday house

other important locations

Monitor BTS for GSM operator

4.Work with standard wireless sensors

Connect a maximum of 15 additional wireless sensors, 315 MHz or 433 MHz for all round protection similar to conventional alarm-systems using accessories such as wireless door sensors, PIR sensors, smoke sensors and gas sensors. This is a unique functionality offered by the TUTA camera.

Items

Remark

Power adapter

input 100V-240V/50Hz output DC 5.5V

Operating temperature

10-+45 degree

Store temperature

20-+60 degree

Relative humidity

10-90% without condensation

Operating frequency

EGSM900, GSM1800 (Optional GSM850, PCS1900 )

PHASE 2/2+

Receive code of wireless sensor

ASK

Receive band of wireless sensor

315 MHz or 433MHz

Effective range of the remote control

10 m

Max quantity of sensor

15 units

Image format

JPEG

Image resolution

160×128, QVGA(320×240), VGA(640×480)

Viewing angel

68 degree(horizontal), 68 degree (vertical)

Best viewing distance

#8804;9 meters (day time) ≤6 meters (night time)

Effective sense distance of PIR sensor

#8804;6 meters(obverse)

Lithium ion battery

800mAh

Standby time of the battery (Depending onwork)

12 hrs
