MINI cnc router

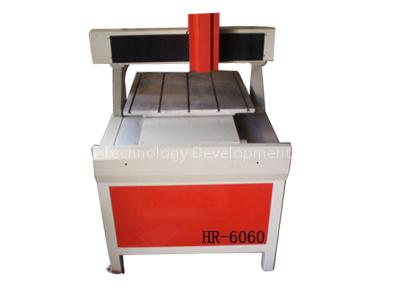

Small cnc router HR-6060

Performance1, HIWIN High precision ball screw, offers the higher precision.
2, Import the linear guide with self-lubricating slider, guarantee the rigid precision and strength,3, the controller with breakpoint memory,Break point and break knife continue engraving function, can engrave at any place as you like.4, the controller will save so many original point of many work piece,
5, strong table, sturdy and durable, the machine body can not be transformation at long time, make the machine with higher precision,6, U-steel machine body or casting steel machine body,

Small cnc router	HR-6060
X,Y working area	600mm*600mm
Z working area	80mm
Table Size	720mm*720mm
The max moving speed	4m-6m/min
The max carving speed:	2m-3m/min
Work accuracy	0.01mm
Resolution	0.005mm
positioning accuracy	0.05mm
Work voltage	AC220V/50Hz
Command	Gcode*U00*mmg*plt
Spindle power	1.5kw
Tool diameter	3,4,6mm
Spindle rotating speed	0-24000rpm/min
Motor	Stepper motor
Surroundings	Windows2000/xp
